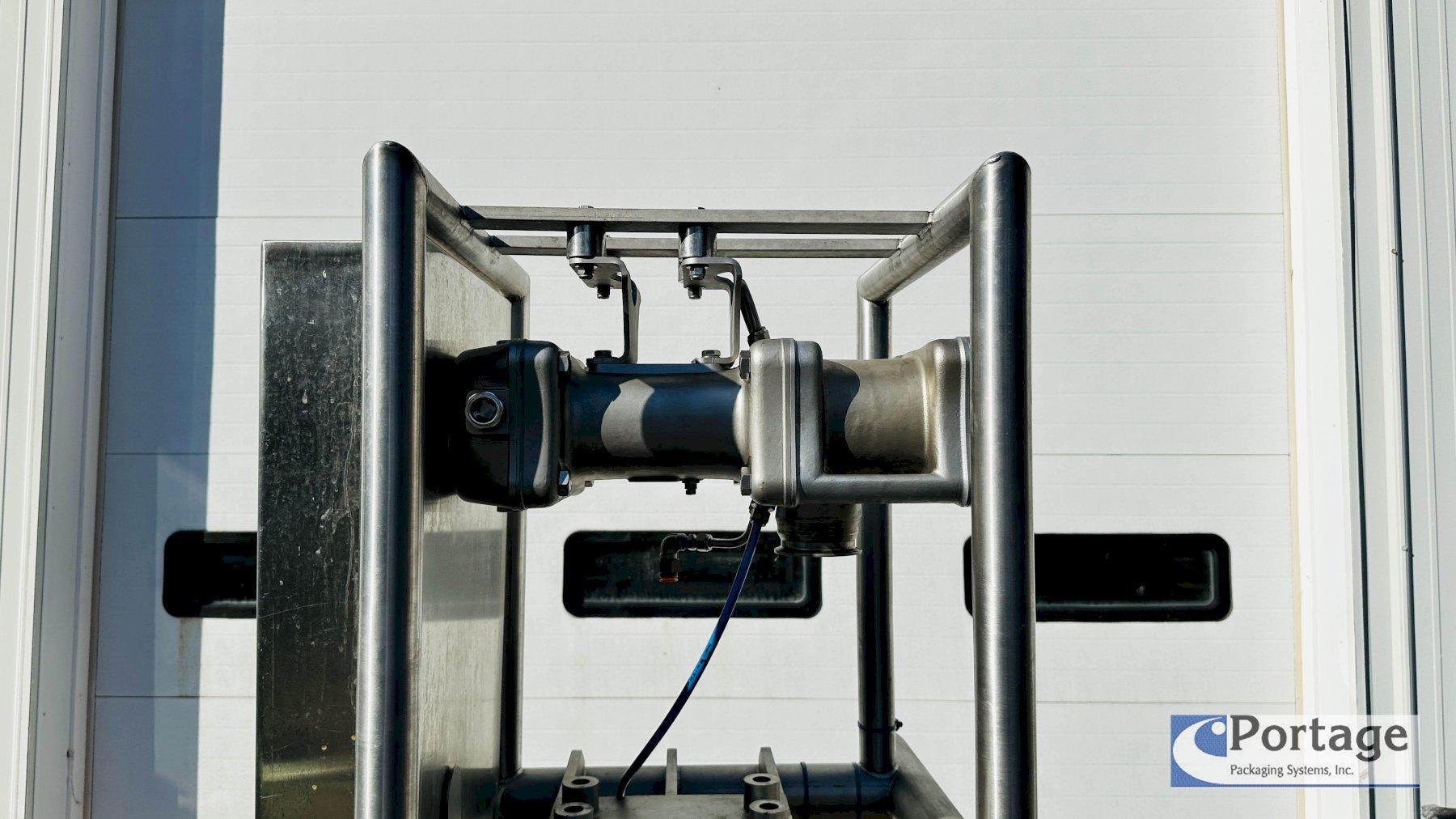

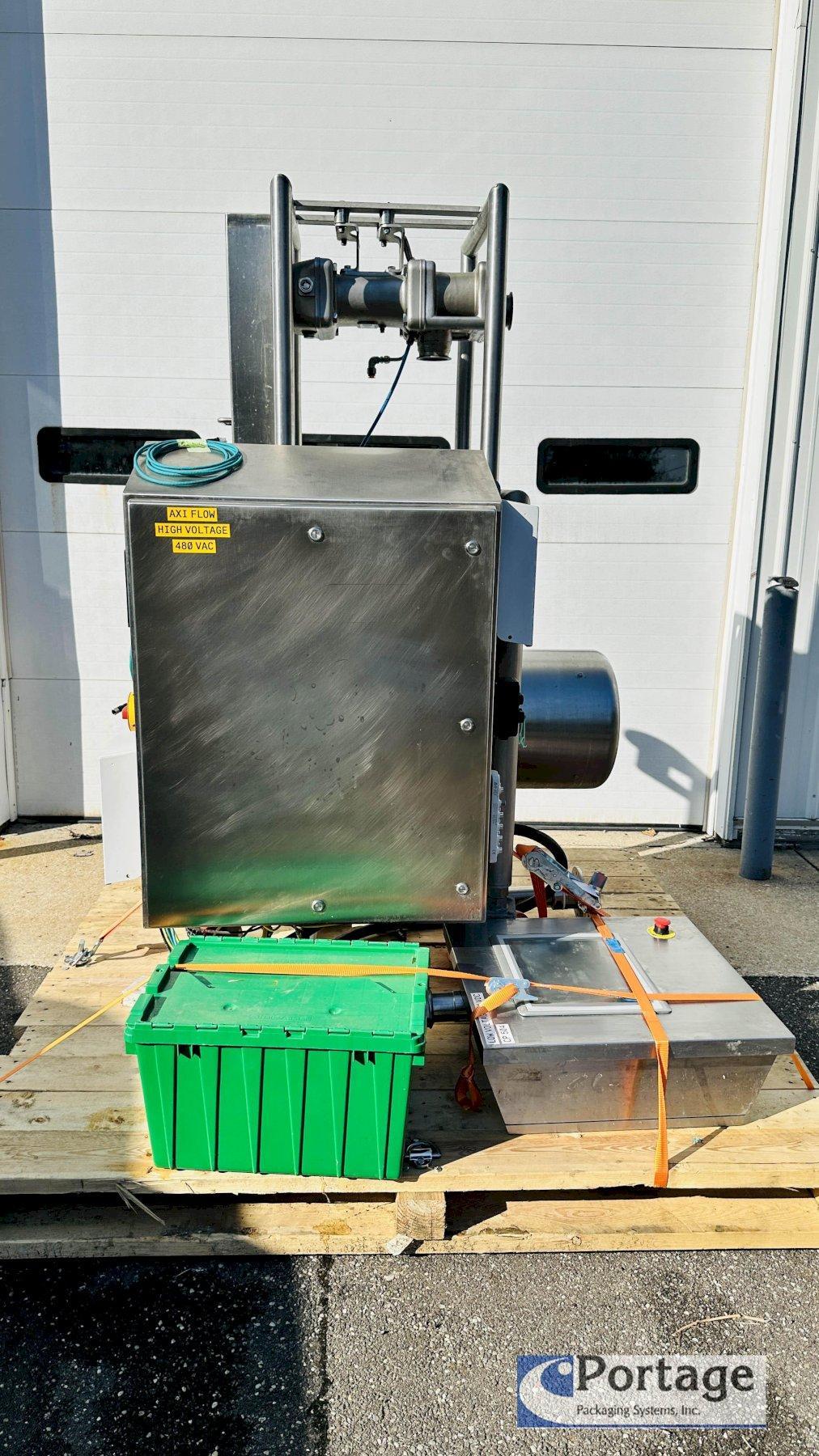

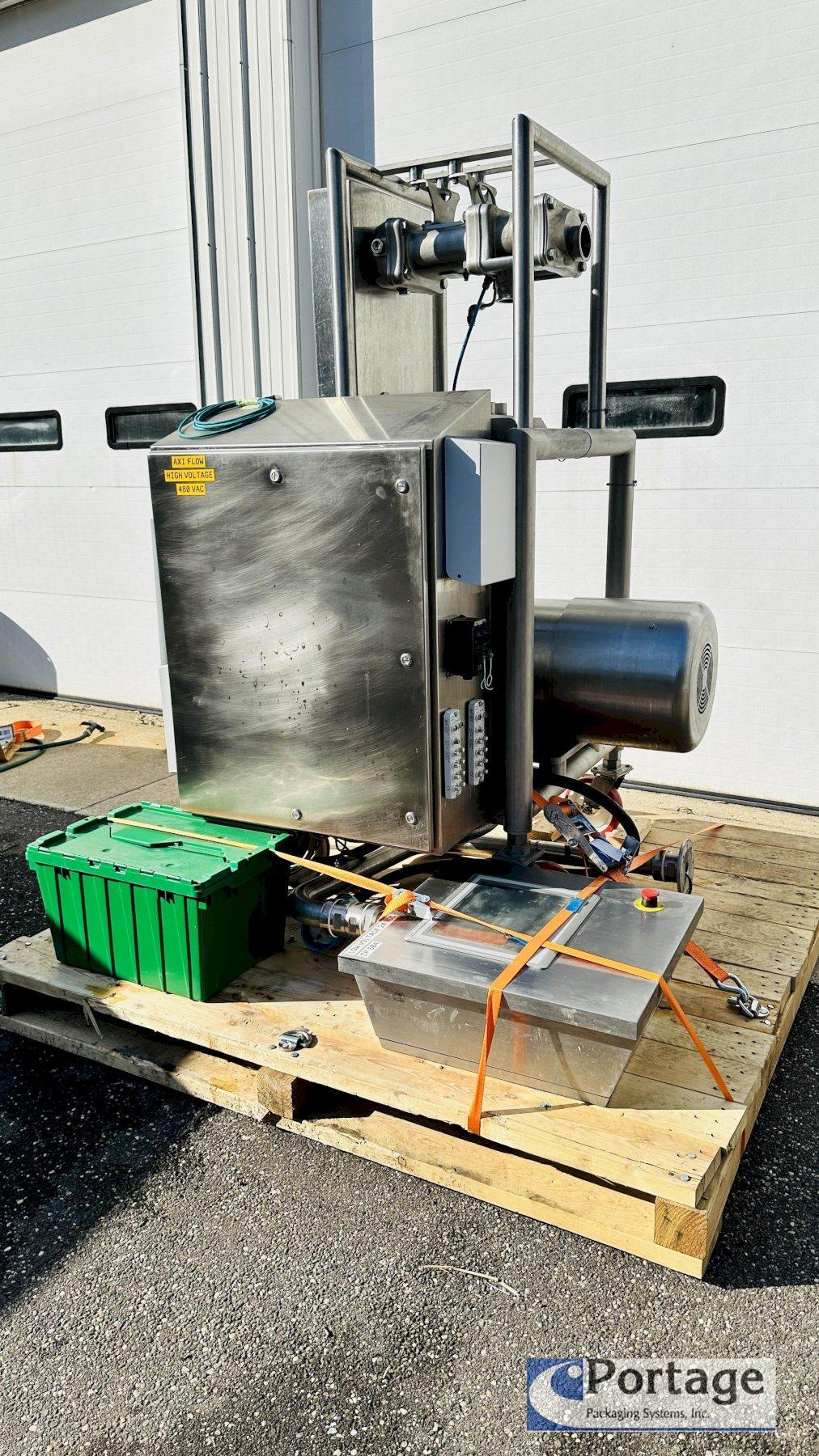

Processtec Inc. 104.27 NG Sanitary Screw Pump

40Hp Wash-down Pump Cart Assembly

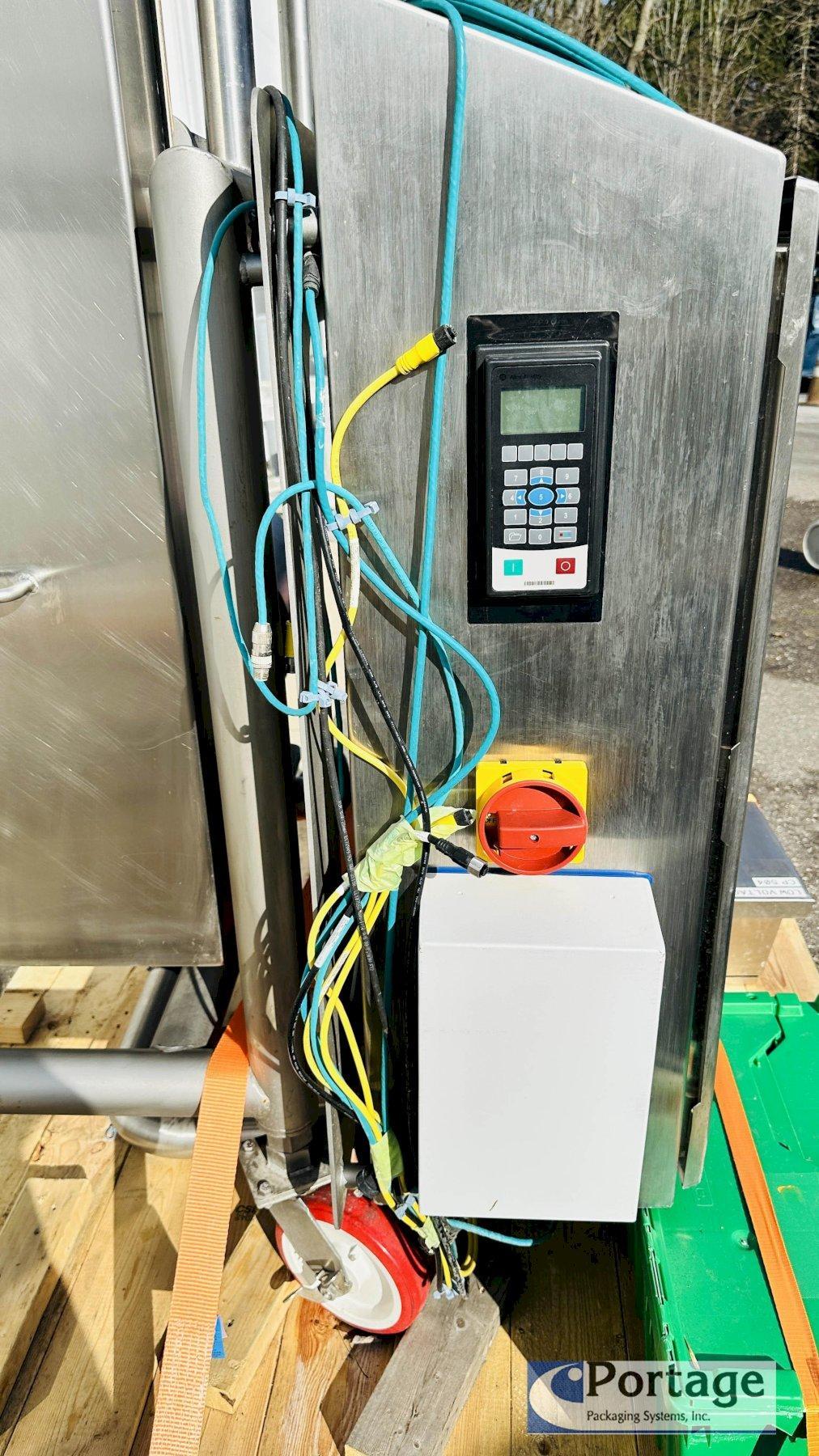

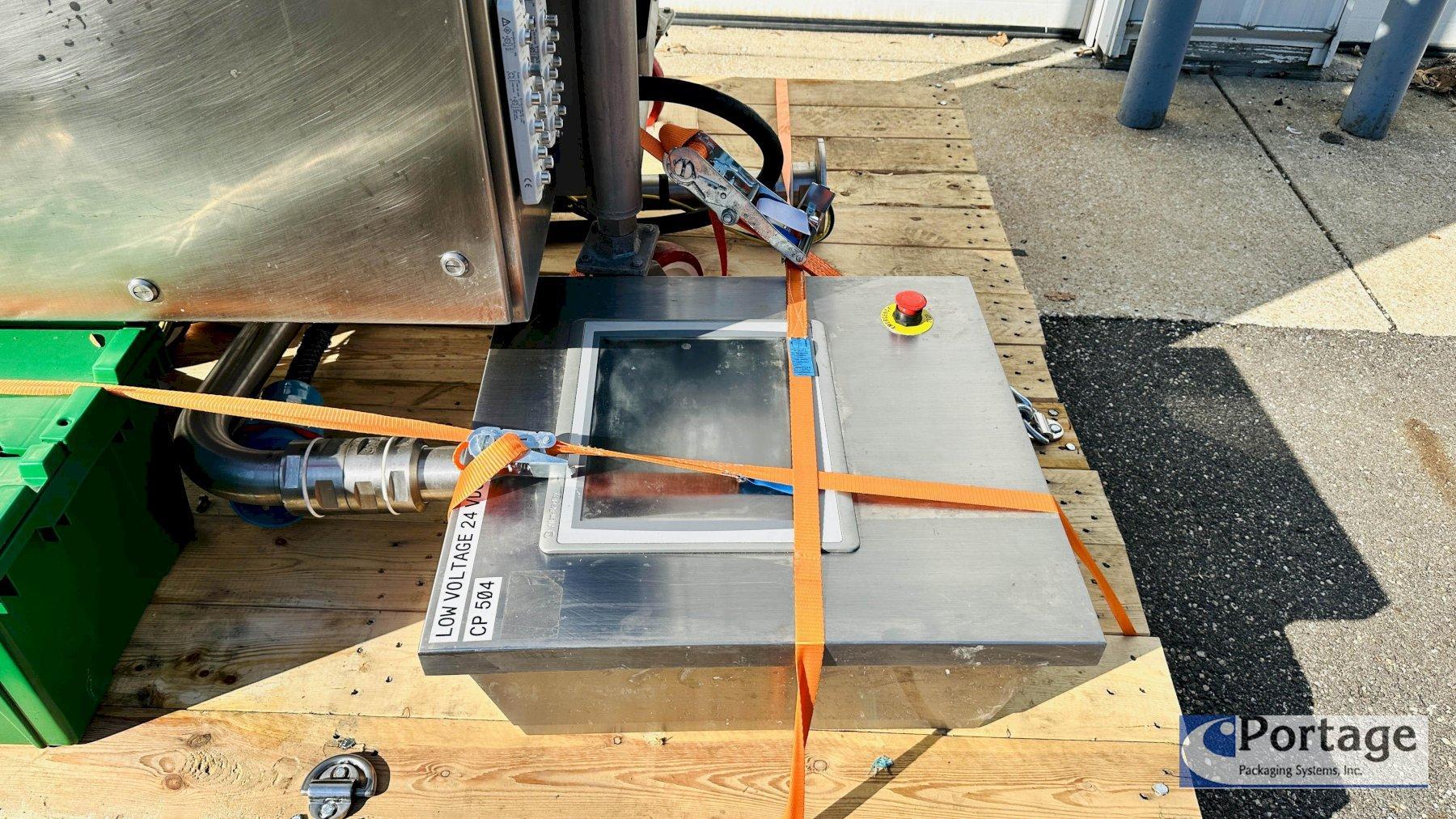

w/AB Touchscreen Controls

Pump Manufacturer:

PROCESSTEC INC.

Model:

TwinVisco 140.27 NG Sanity Screw Pump

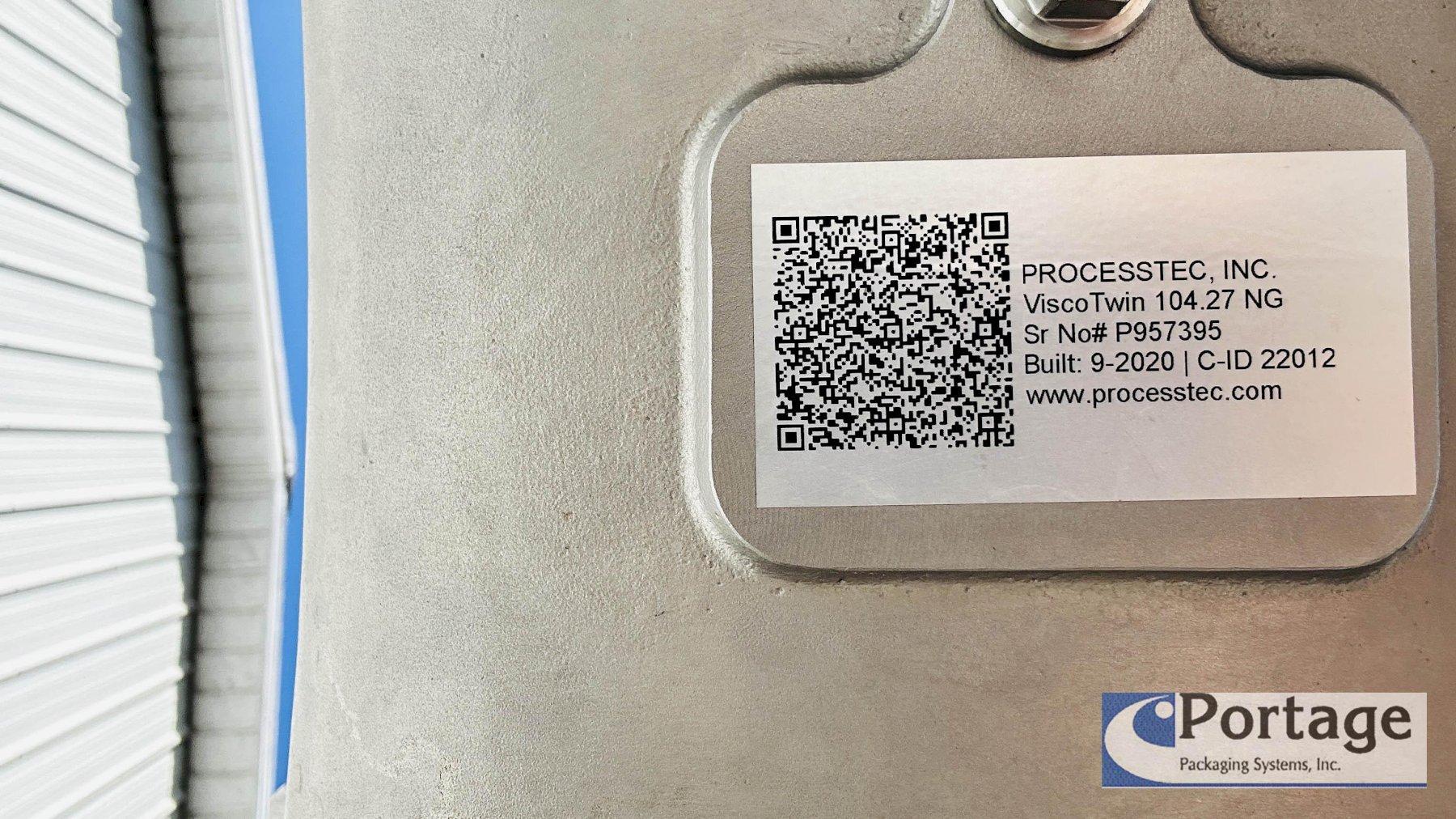

Serial No.:

P957395

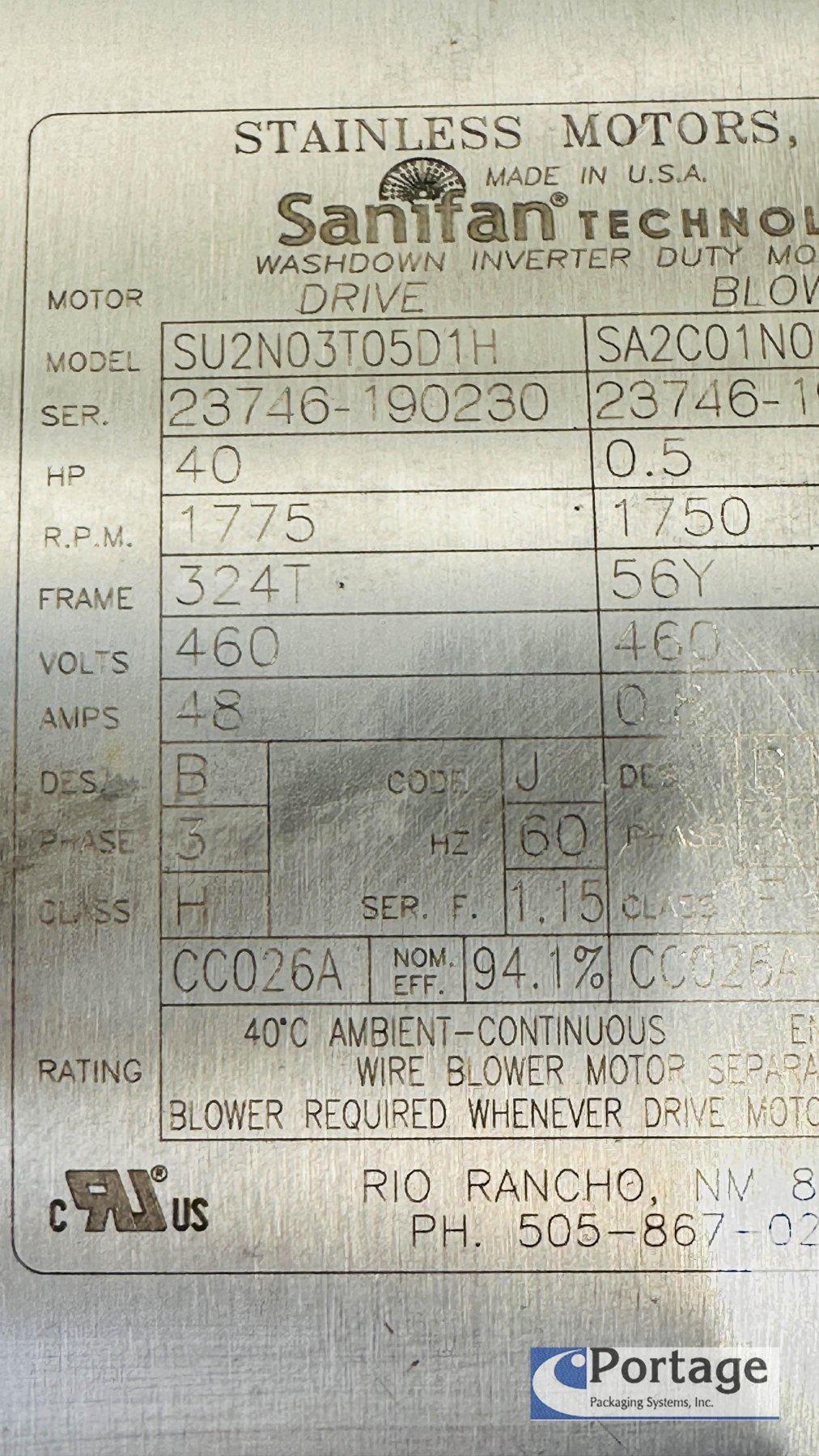

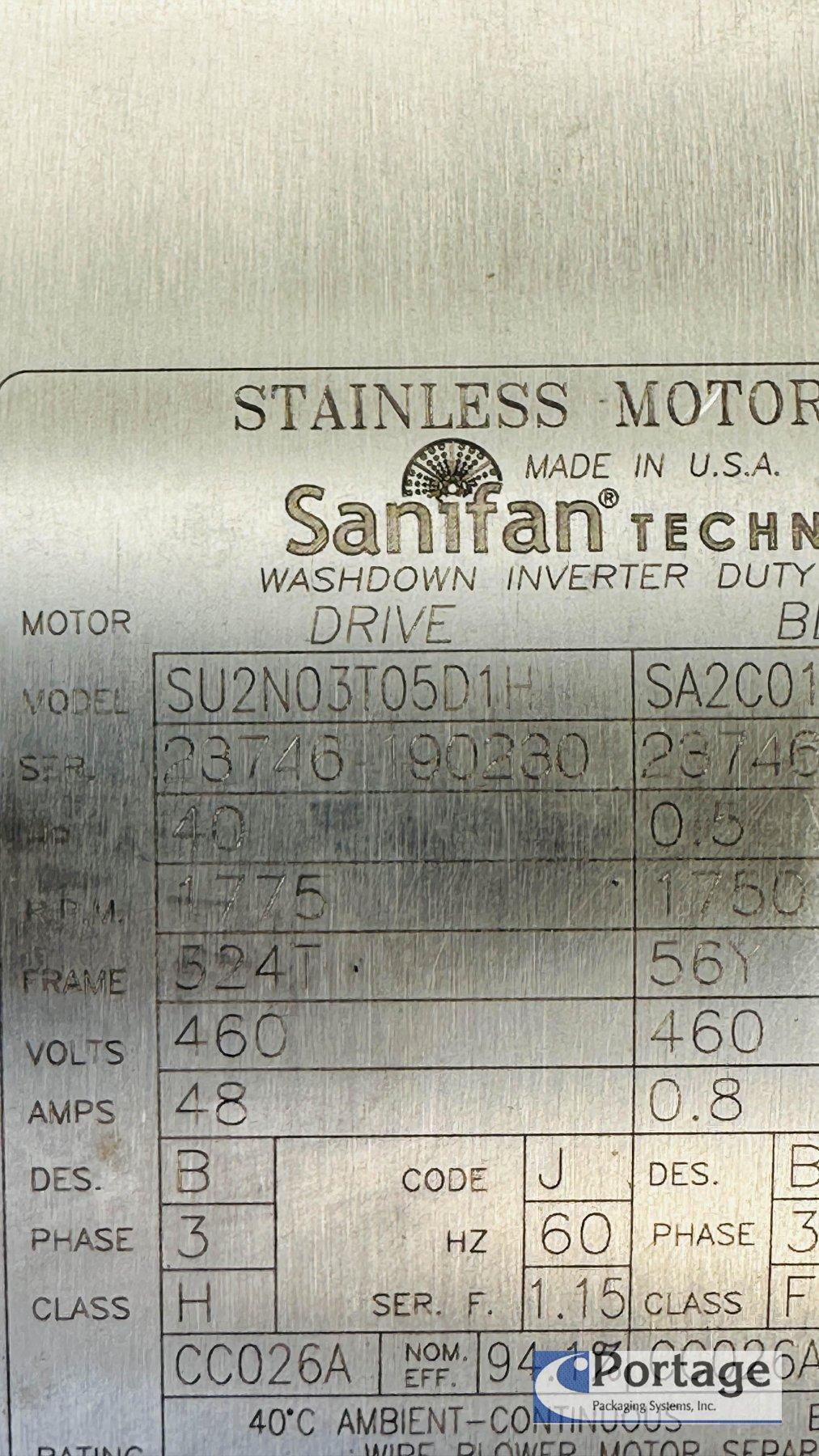

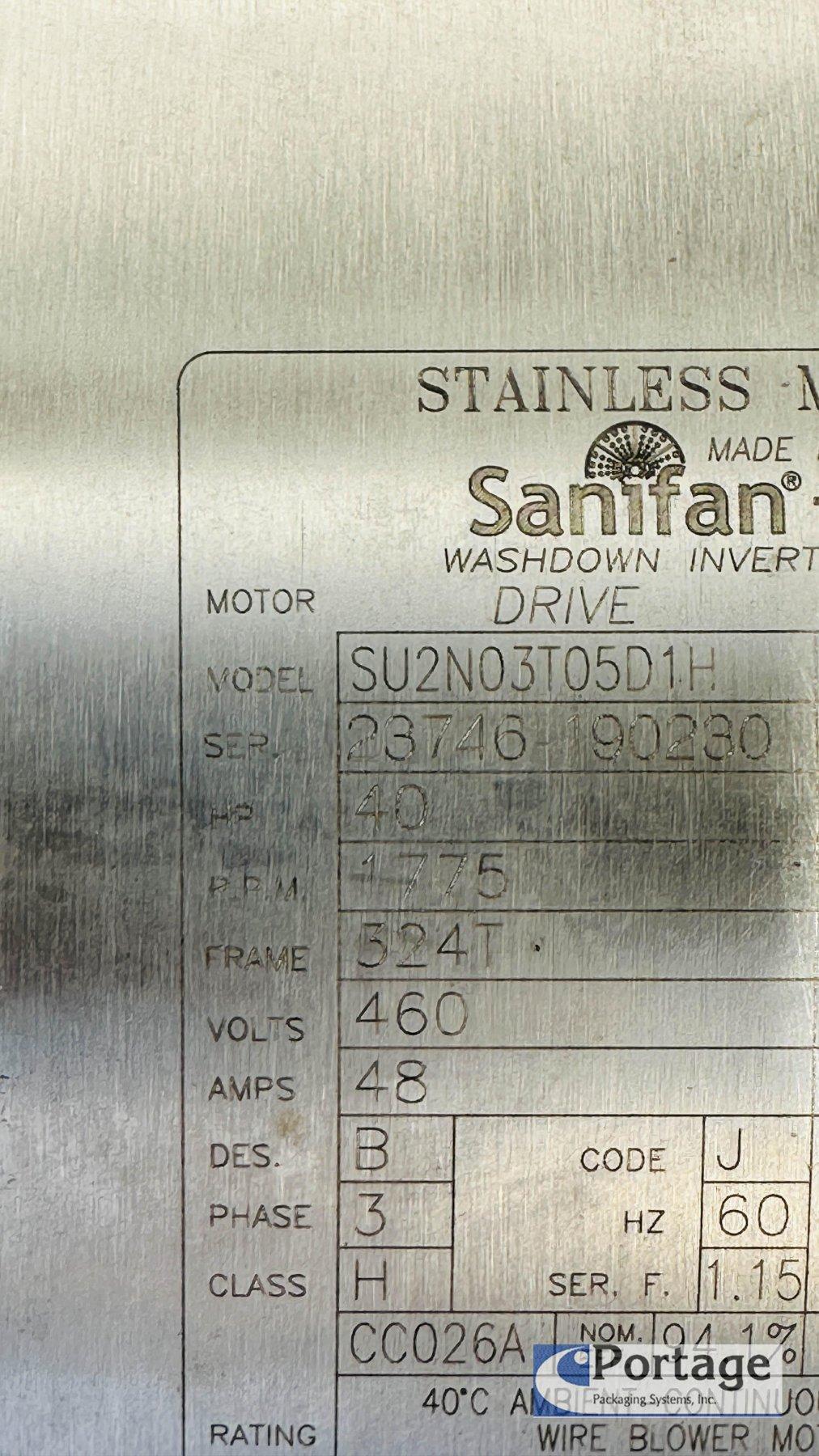

Motor Manufacturer:

Sanifan - Wash down motor / inveterer

Electrical Specs Drive:

40HP, 460V, 3-Phase, 48amps, 60Hz, 1775rpms

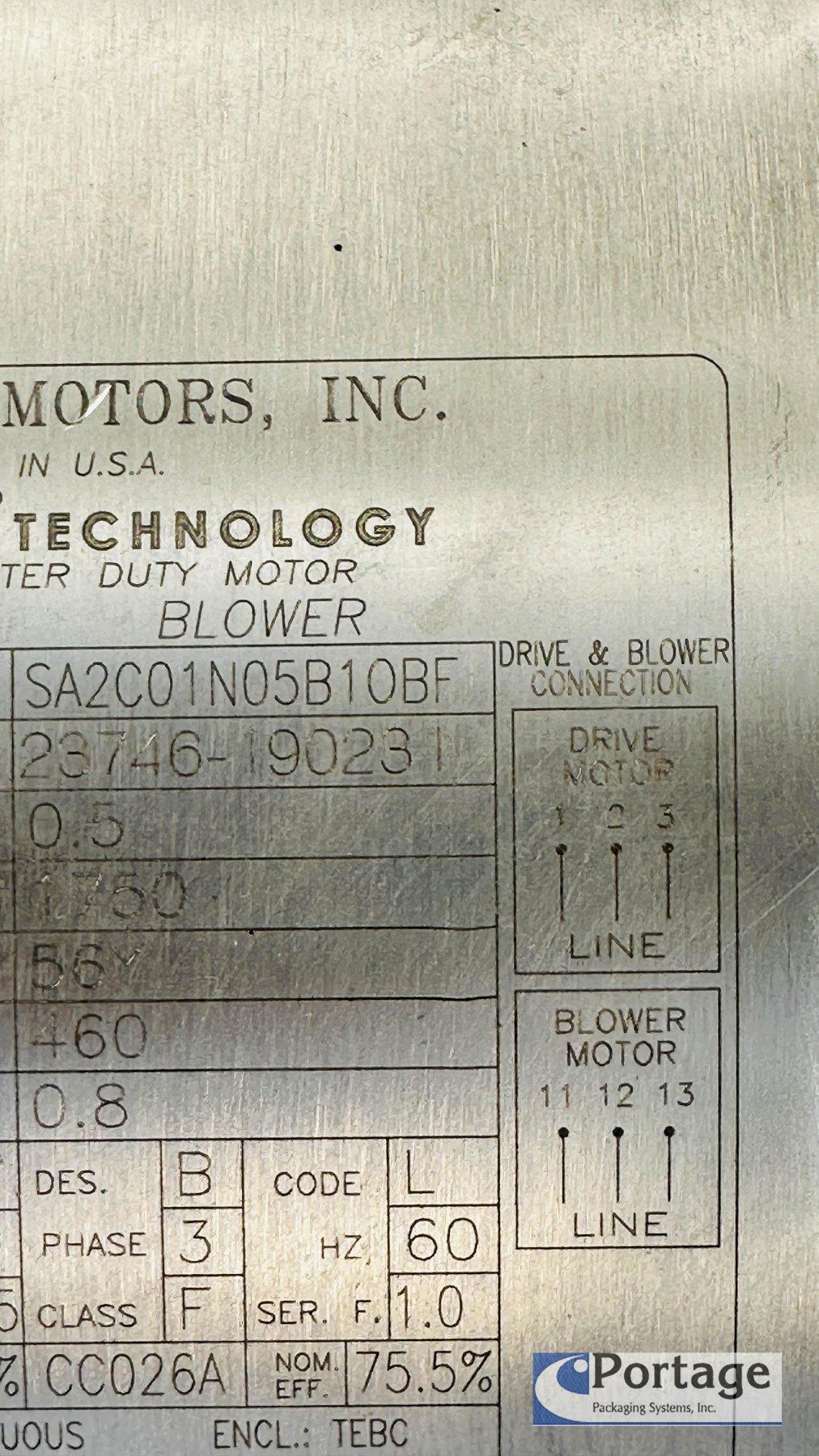

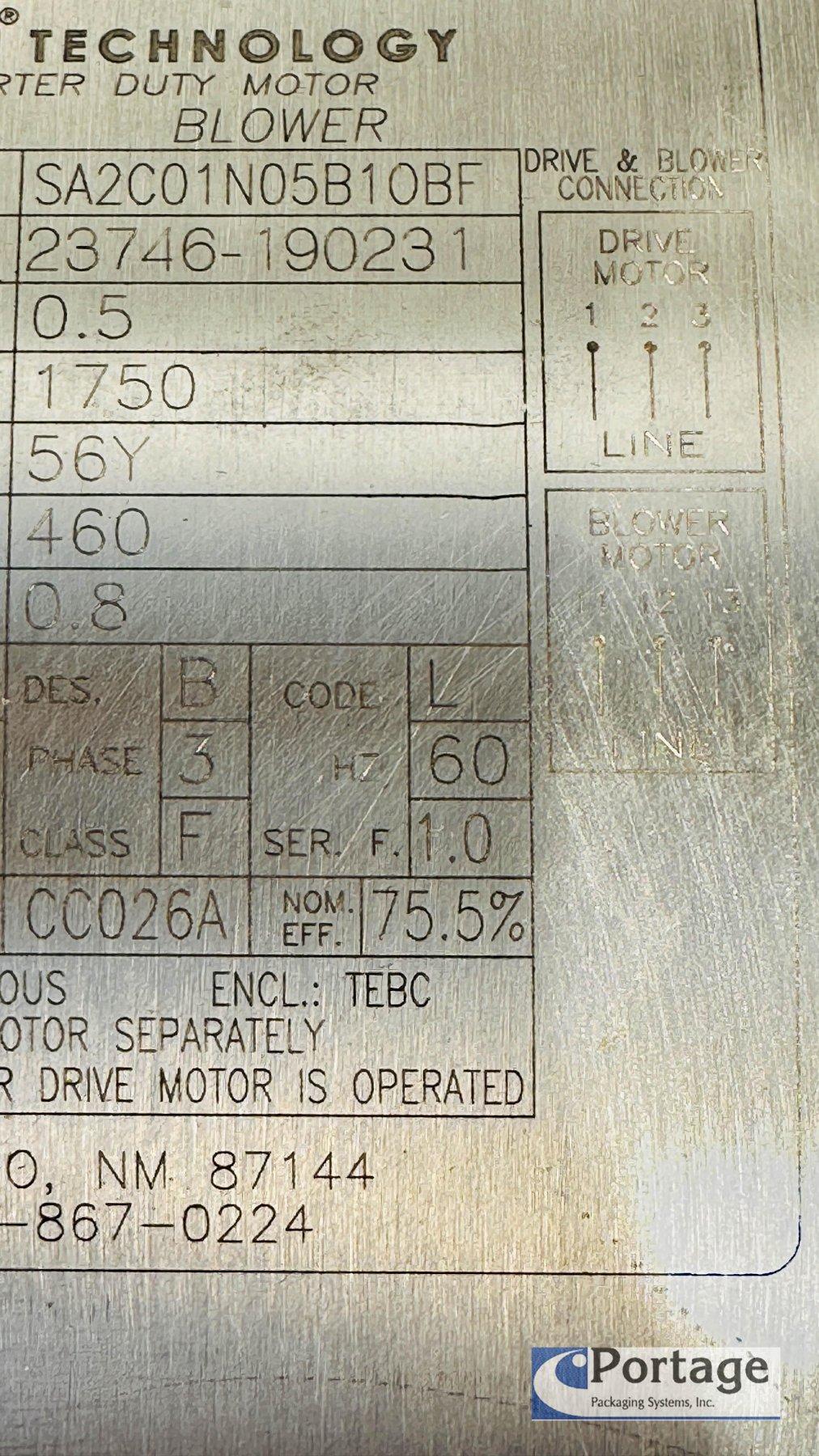

Electrical Specs Blower:

0.5HP, 460V, 3-Phase, 0.8amps, 60Hz, 1750

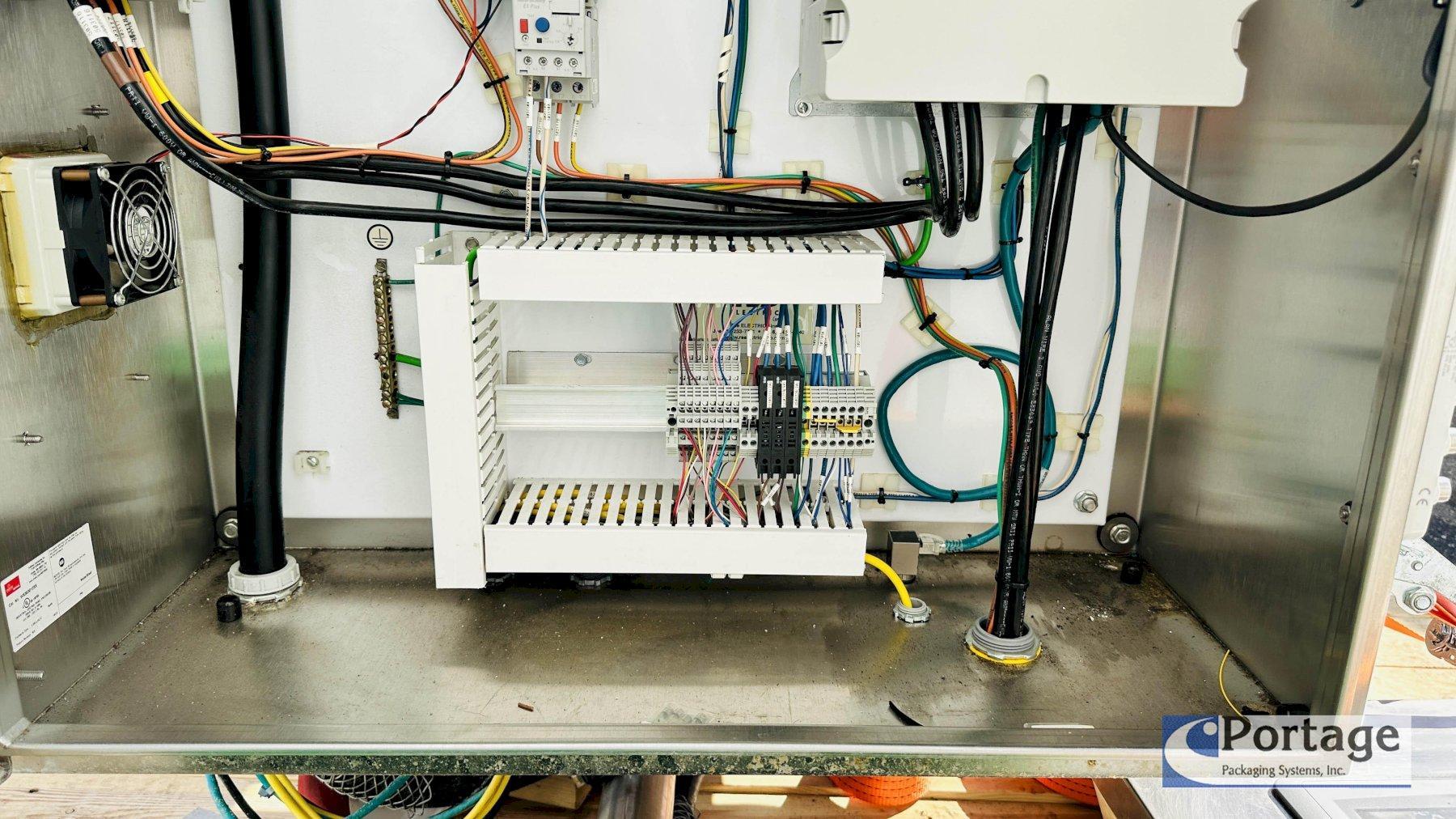

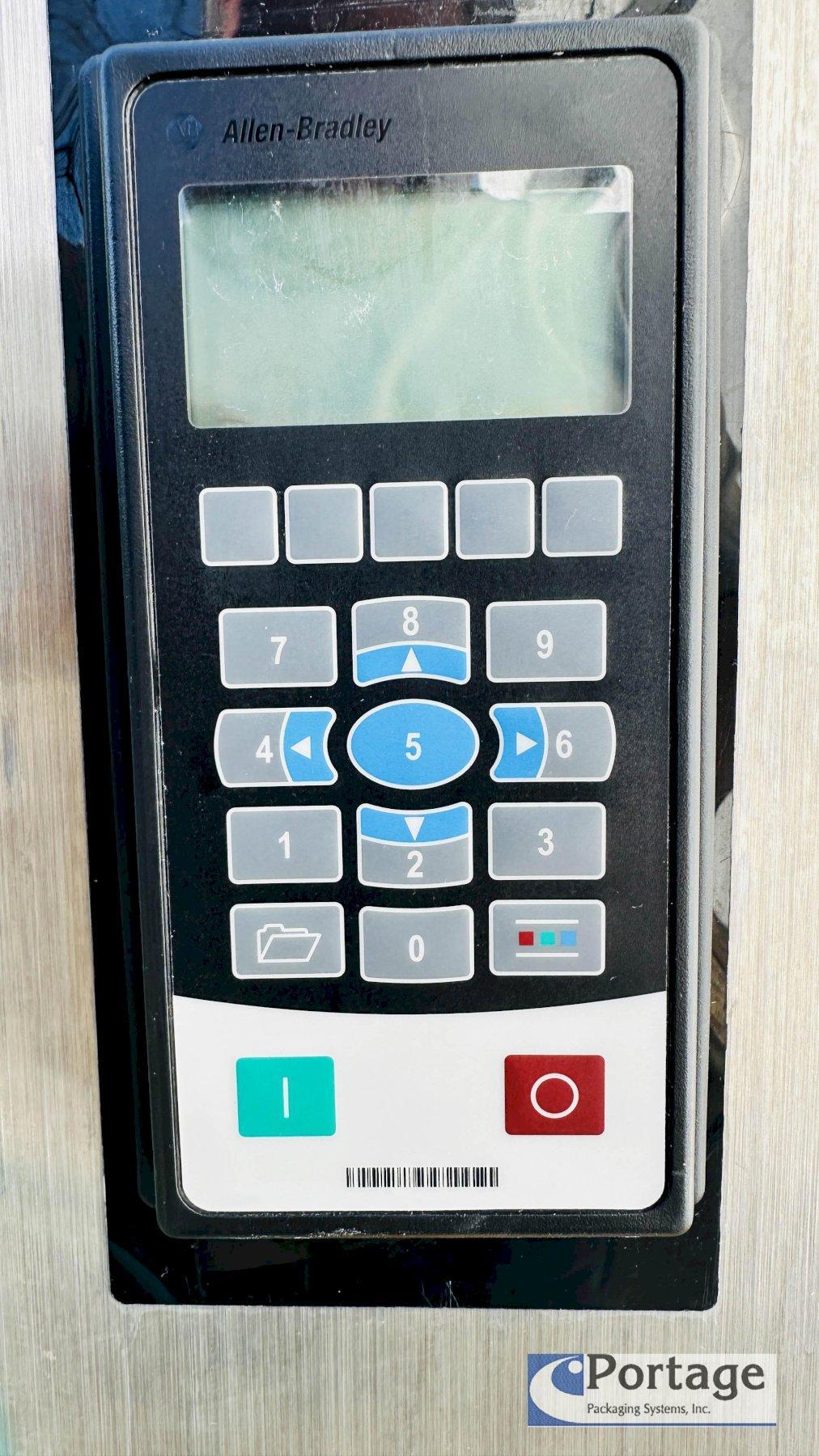

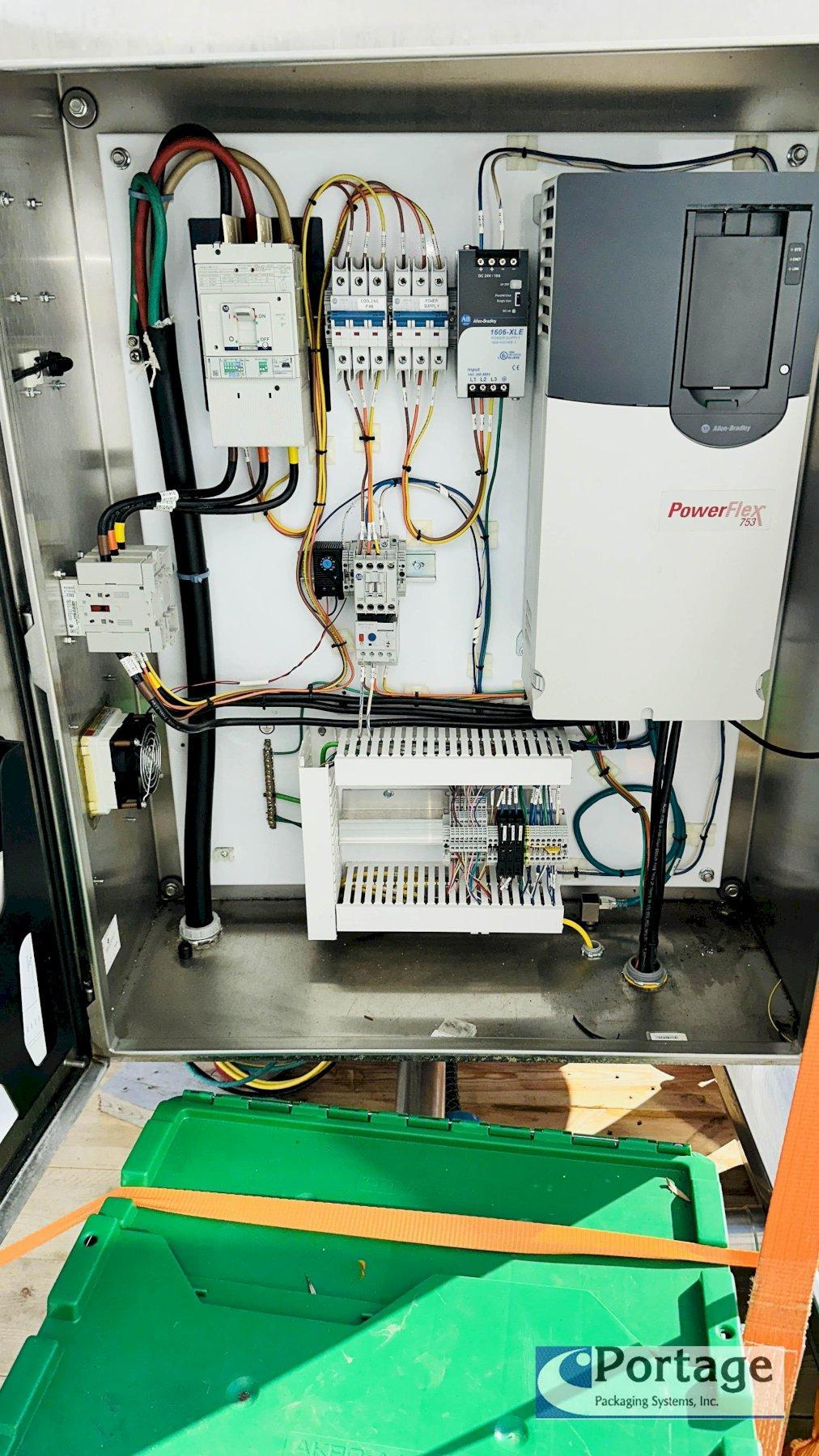

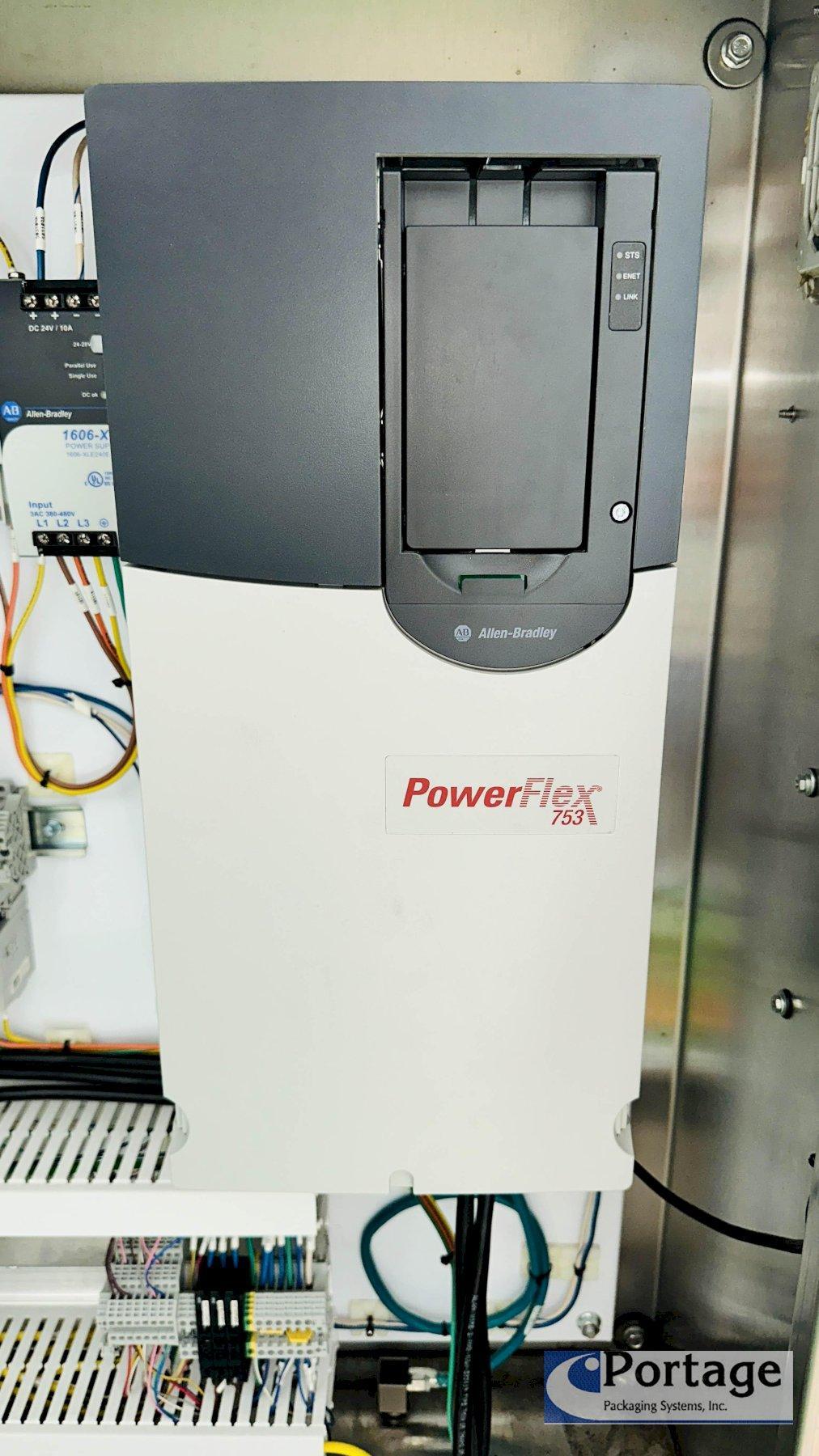

VFD Control:

Allen Bradley PowerFlex 753

Nom Differential Pressure:

230 PSI

Max Flow Rate:

268 GPM

Max RPM:

3600

Max Temp:

266°F

Viscosity:

0.5-1Mio CPS

Particulate Size:

25mm

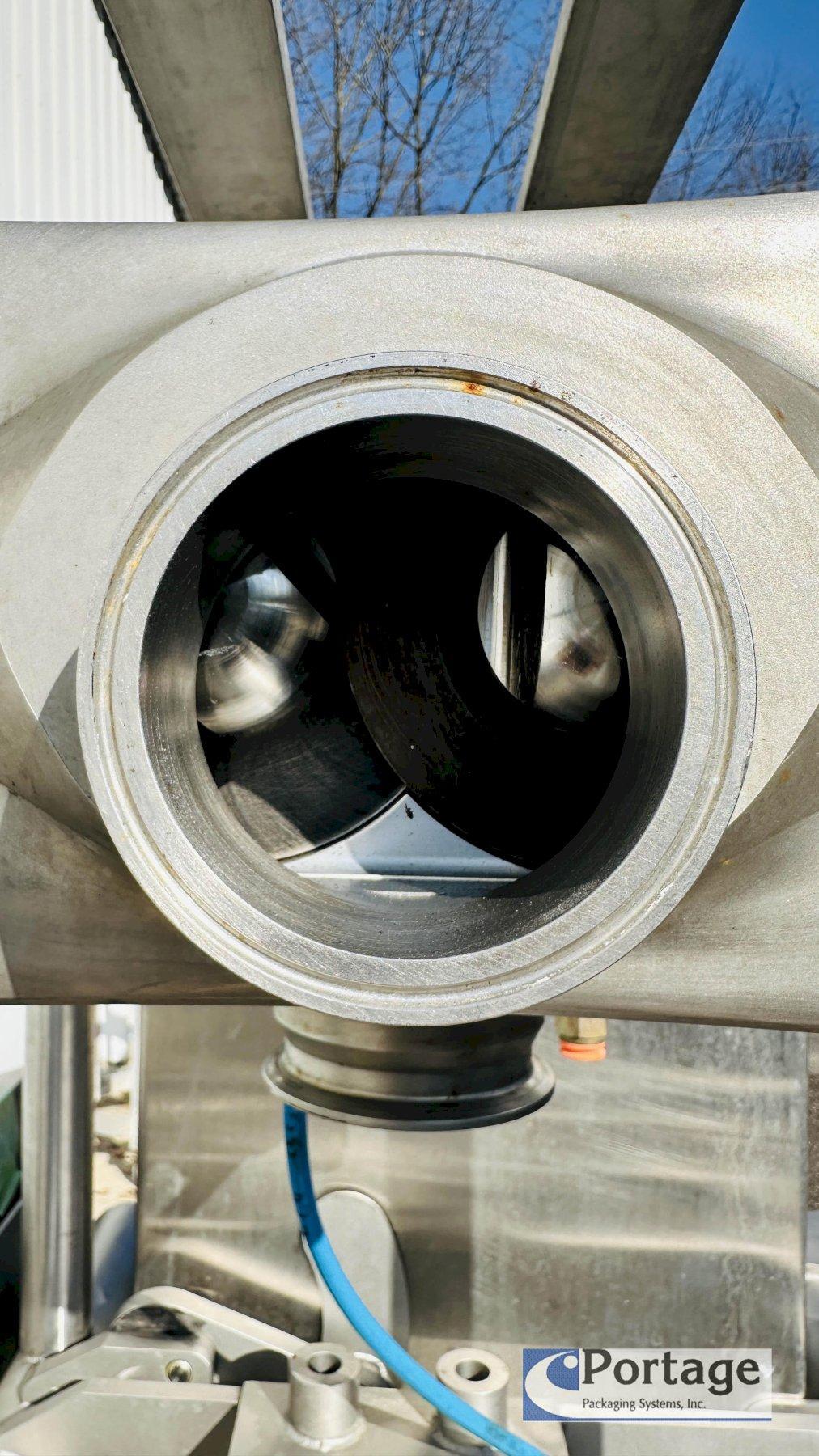

Pumpface OD Size:

4.0” OD

Pump Housing OD Size:

3.0” OD

NPSH:

<5ft

Lobes:

Dual Screw Type

Cart Frame Material:

Stainless Steel

Overall Dimensions:

38”W x 38”L x 66”H Approx. (Not including Control Attached) On Castors

Manufacturier Date:

9/20

Weight:

Approx: 1000lbs

EXTRAS:

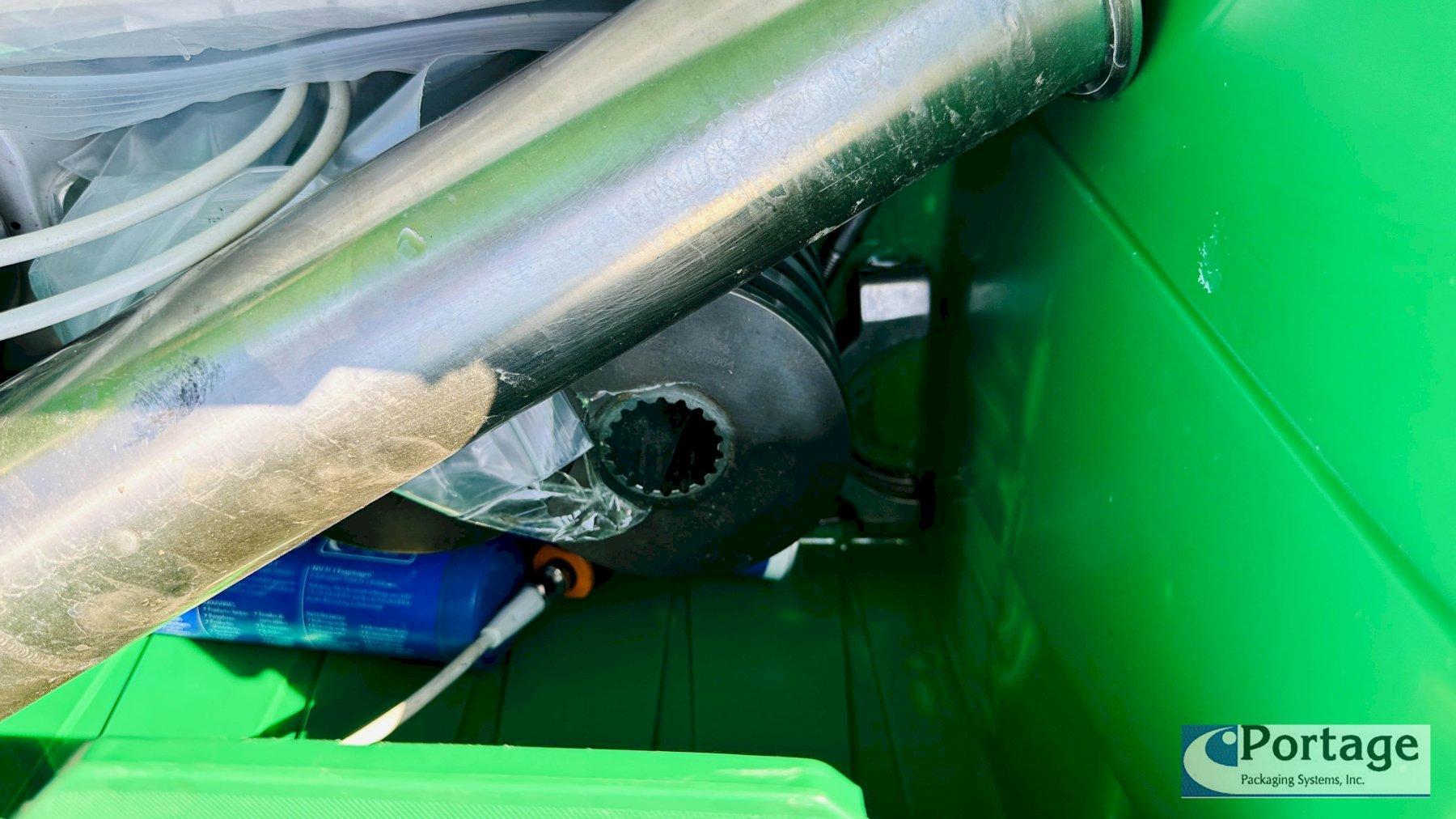

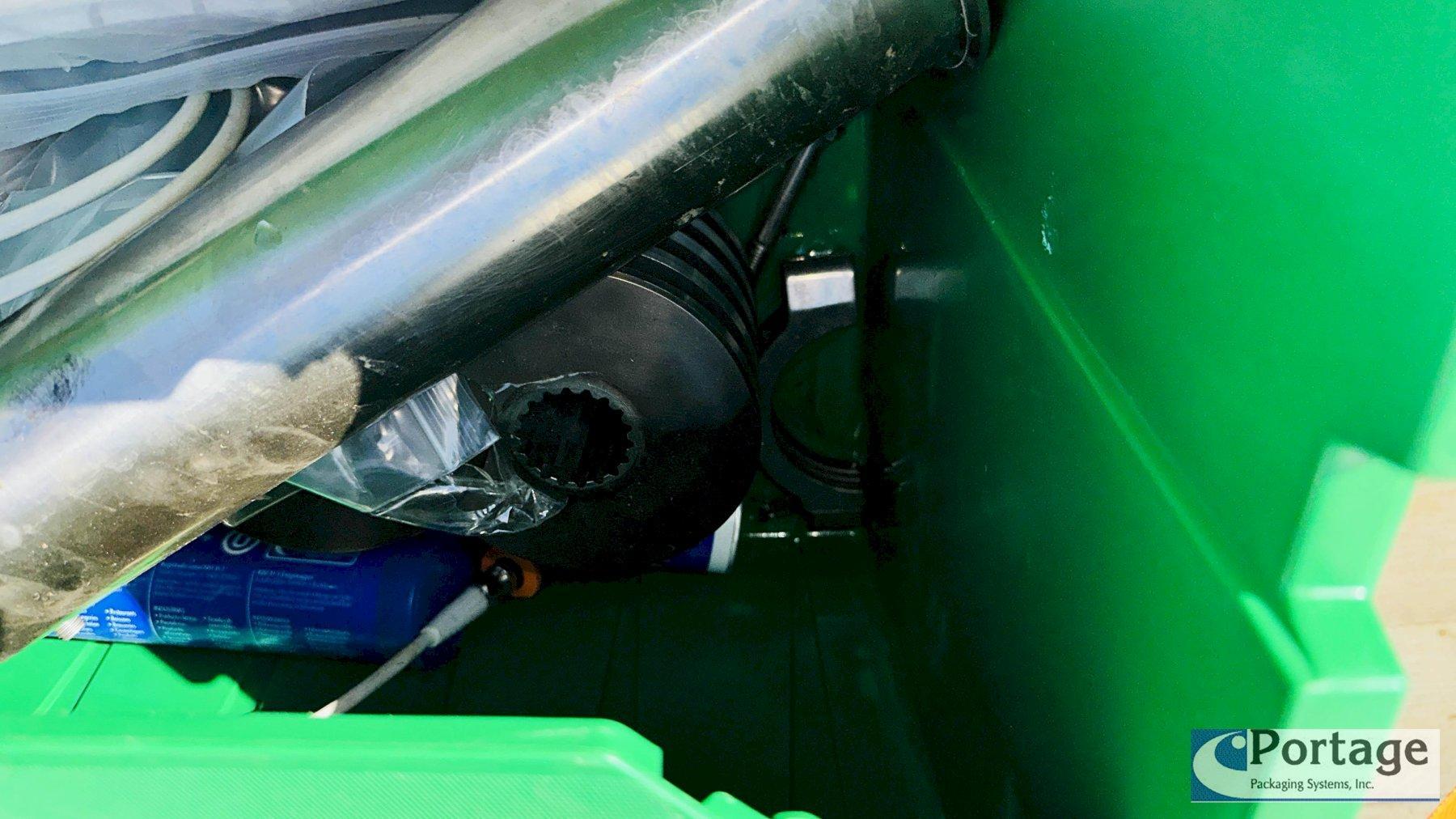

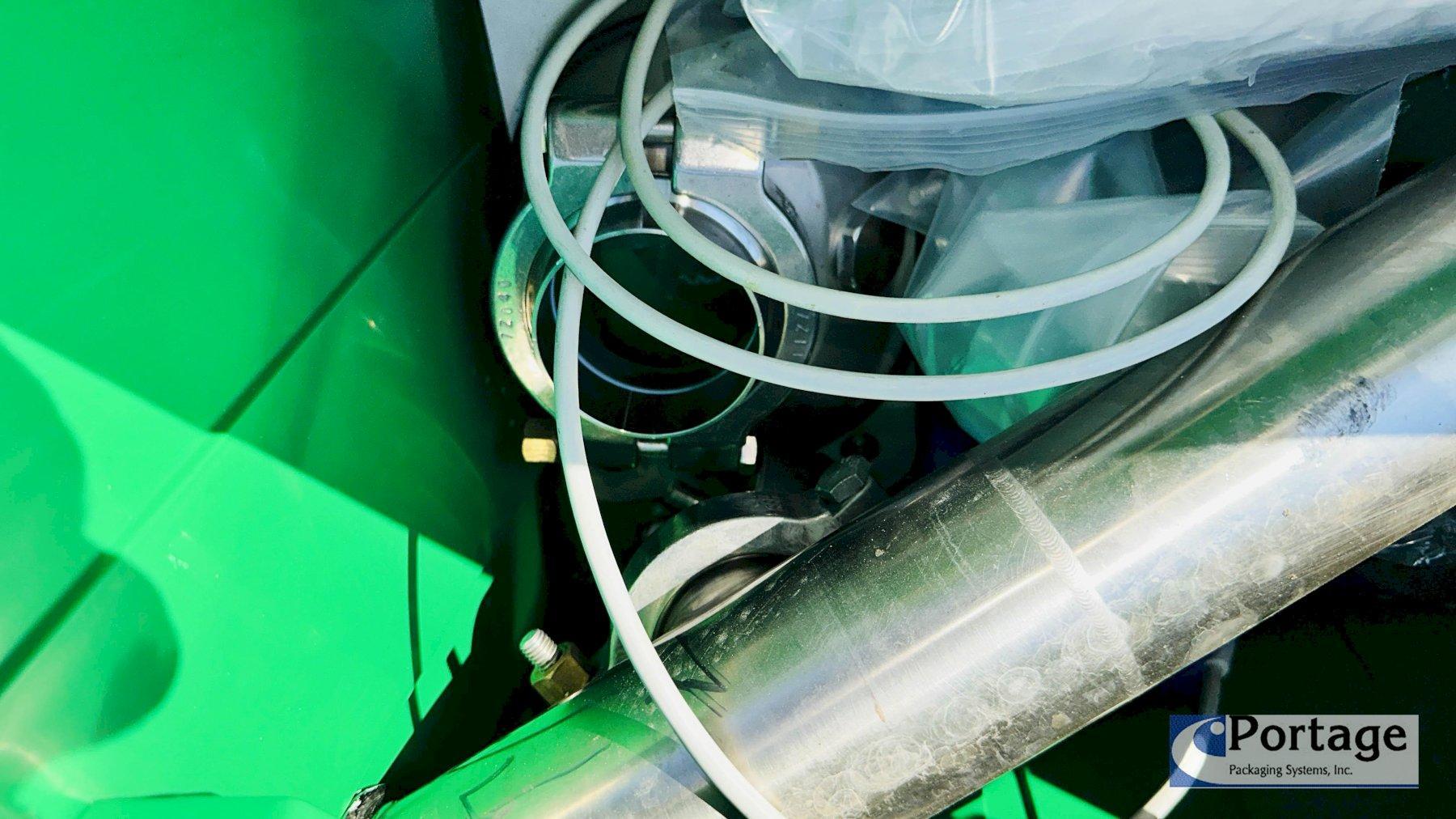

Unit was disassembled and we have not reassembled - Unit came out of a pet food packaging environment with no issues noted when removed from prodution - There are some extras as seen in the box on the skid with the unit.

Seller Note:

Unit is USED - EXCELLENT CONDITION with some visible minor surface wear and some minor scratches/cosmetic scratches none affecting the functionality or the intended use of the unit.  Unit was removed from a clean working pet food environment with no issues noted when removed. Unit was used in pet food environment. What you see in the pictures is what is included in sale (Skidding/Palletizing IS NOT included with the sale, but can be purchased at an extra cost). Unit is being sold AS-IS, WHERE-IS, AS-SHOWN. Pictures are of the actual unit being purchased. If the buyer has any questions, please feel free to ask.
