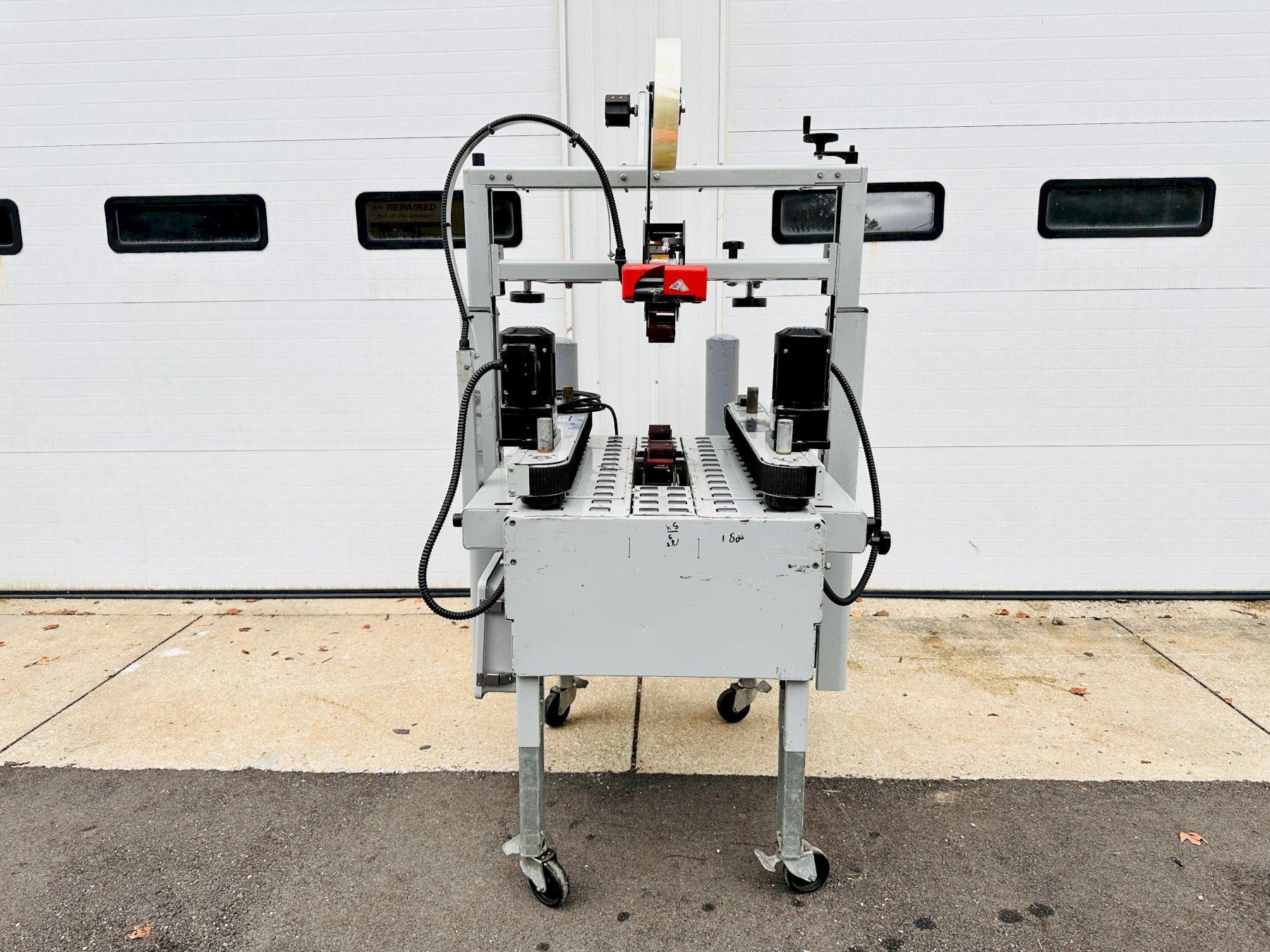

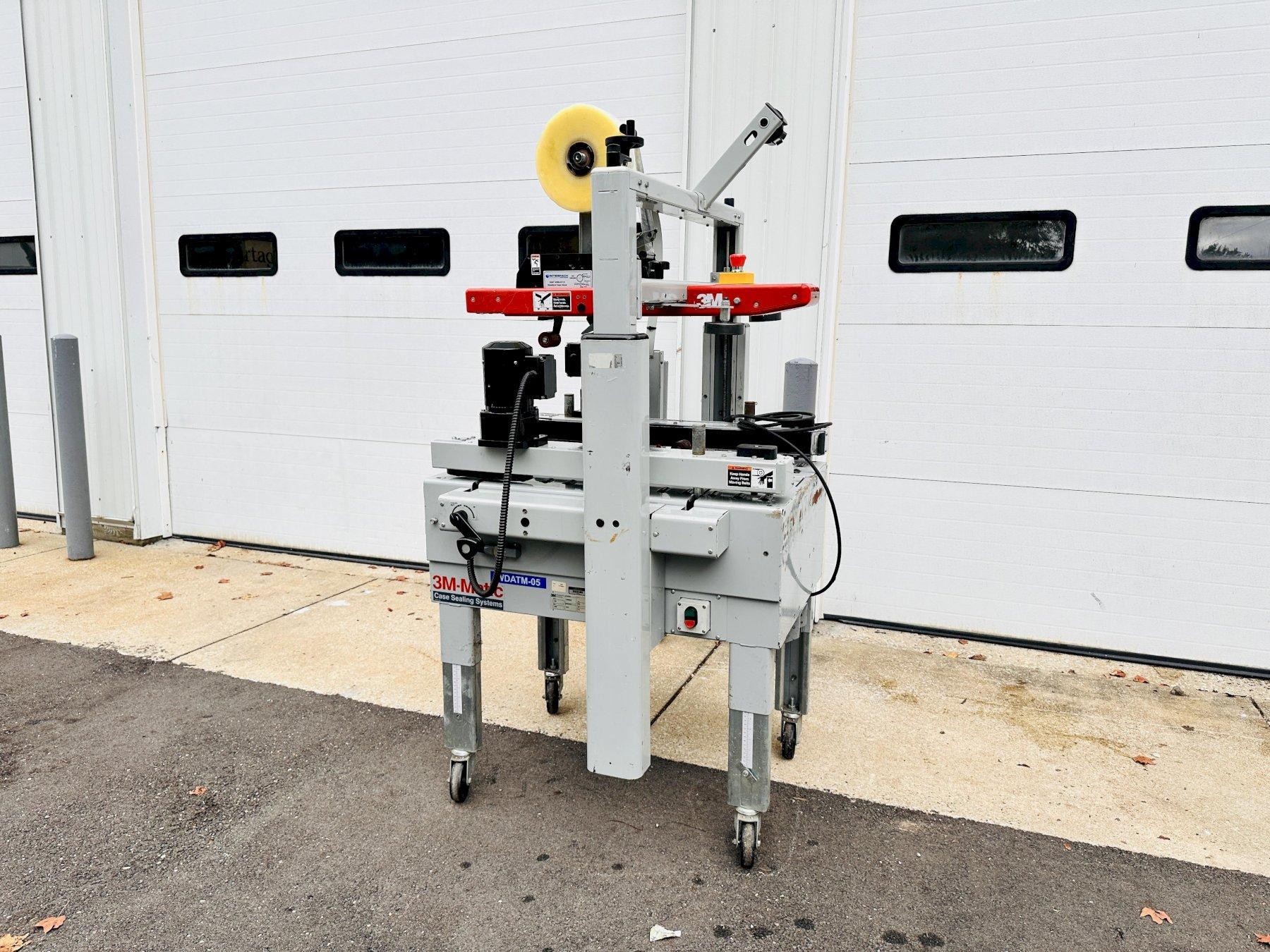

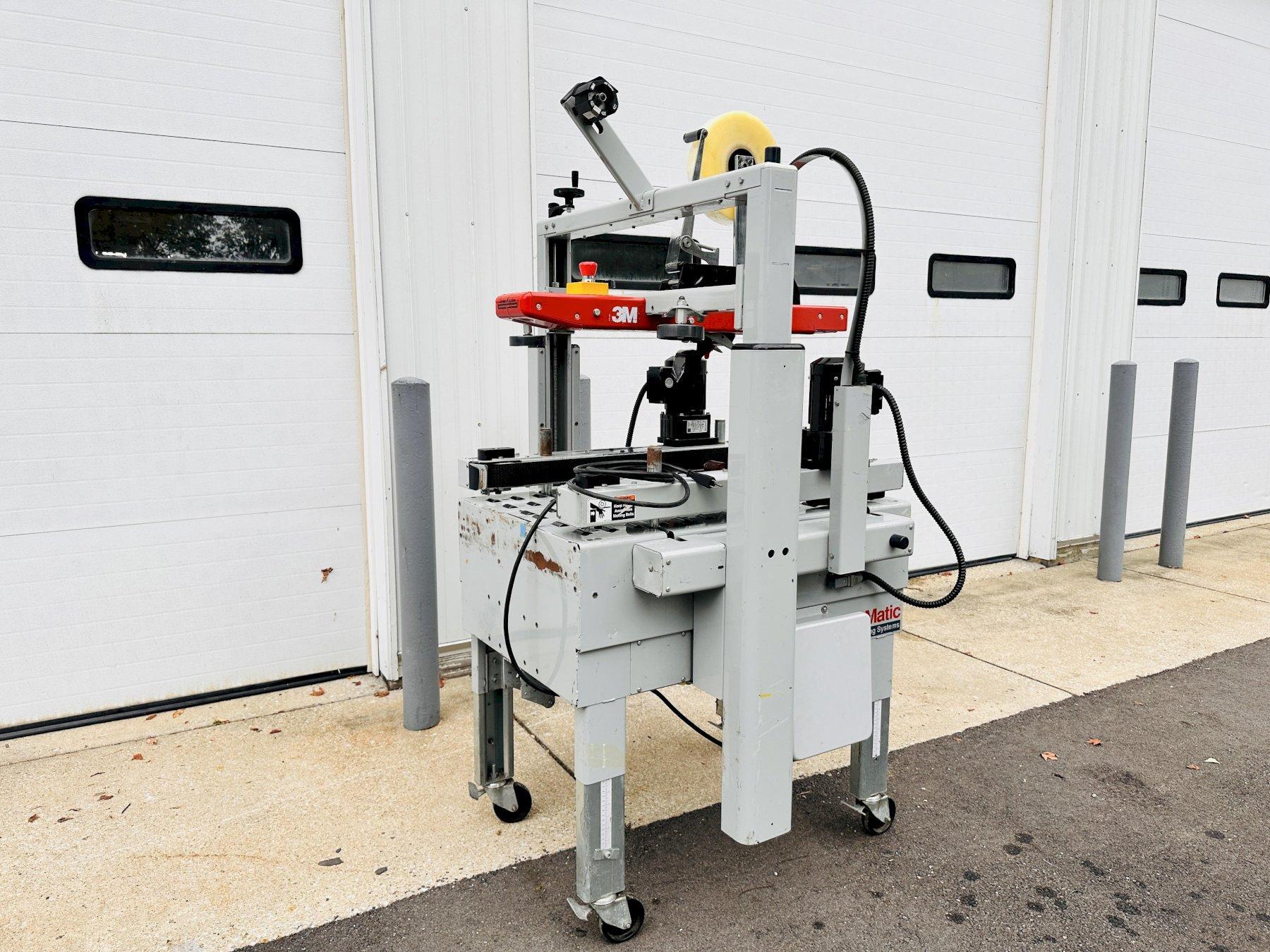

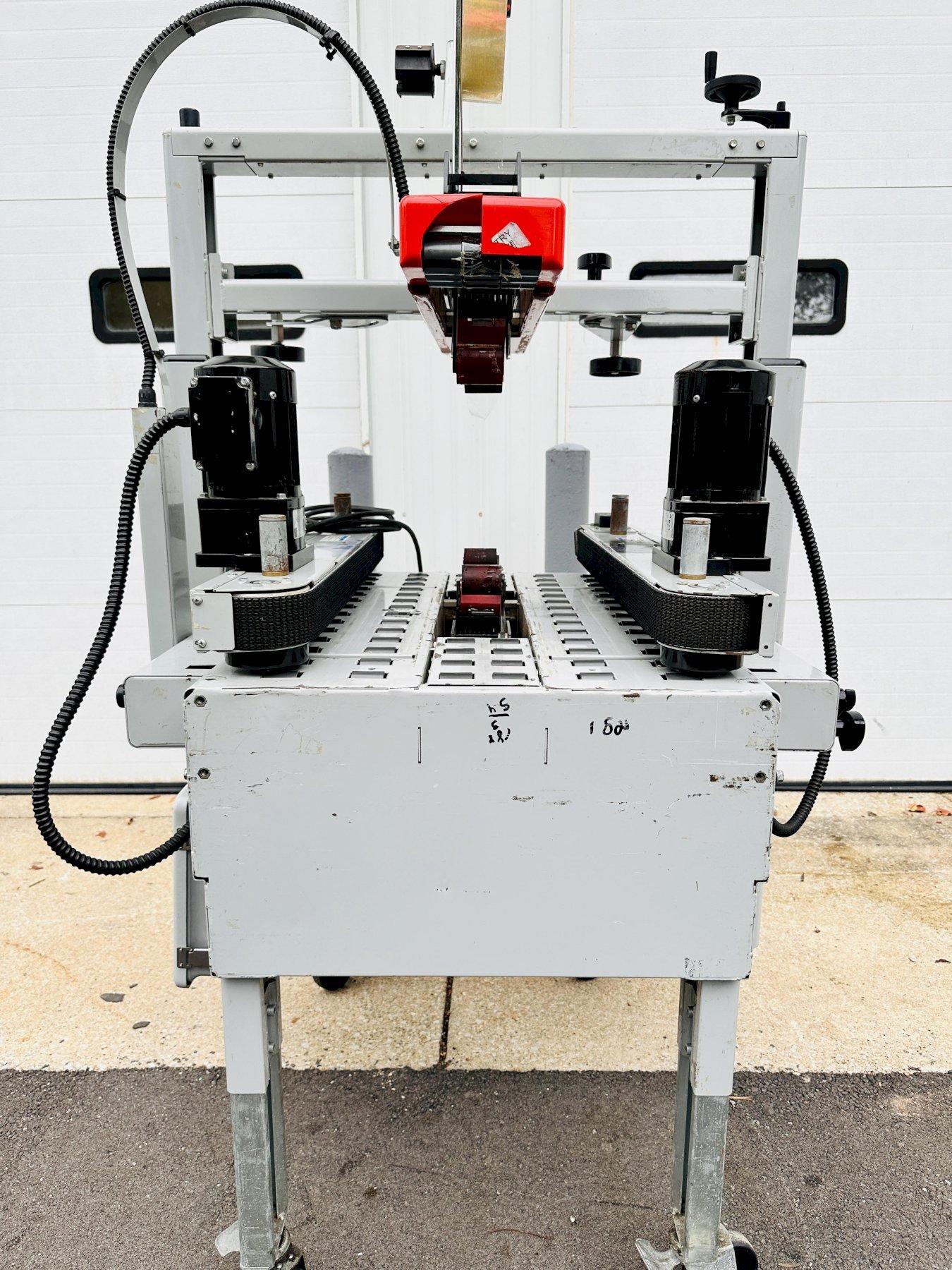

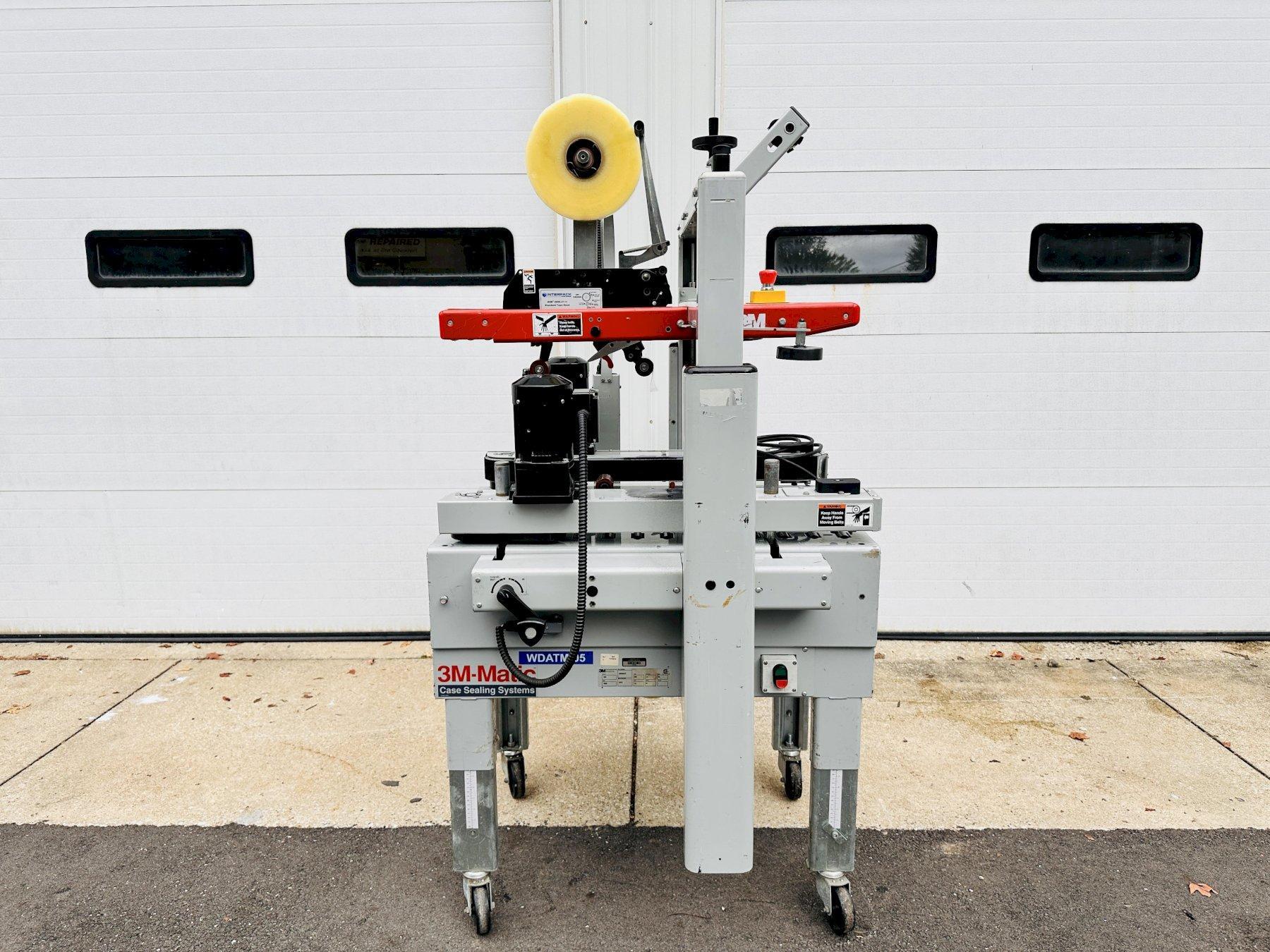

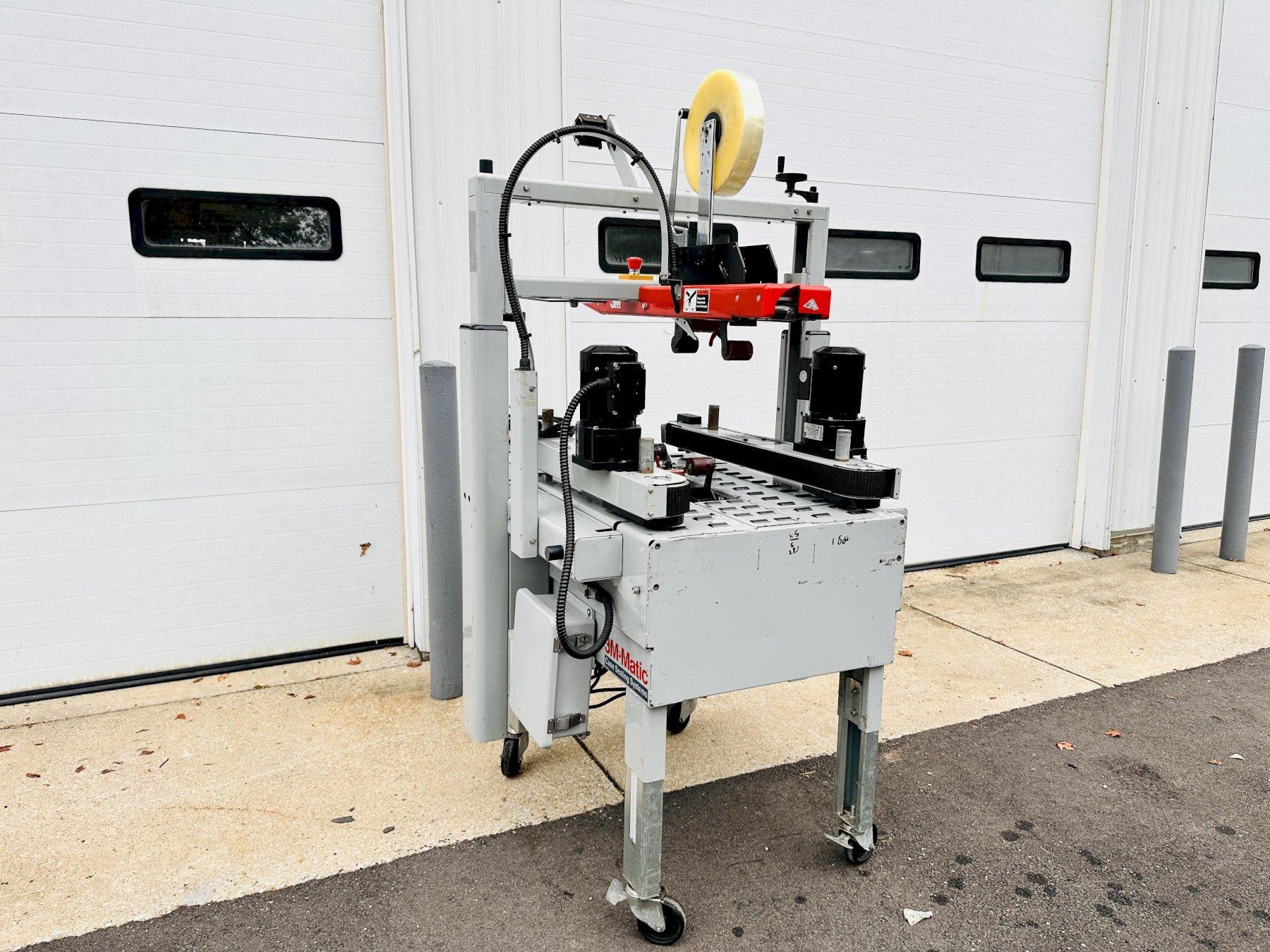

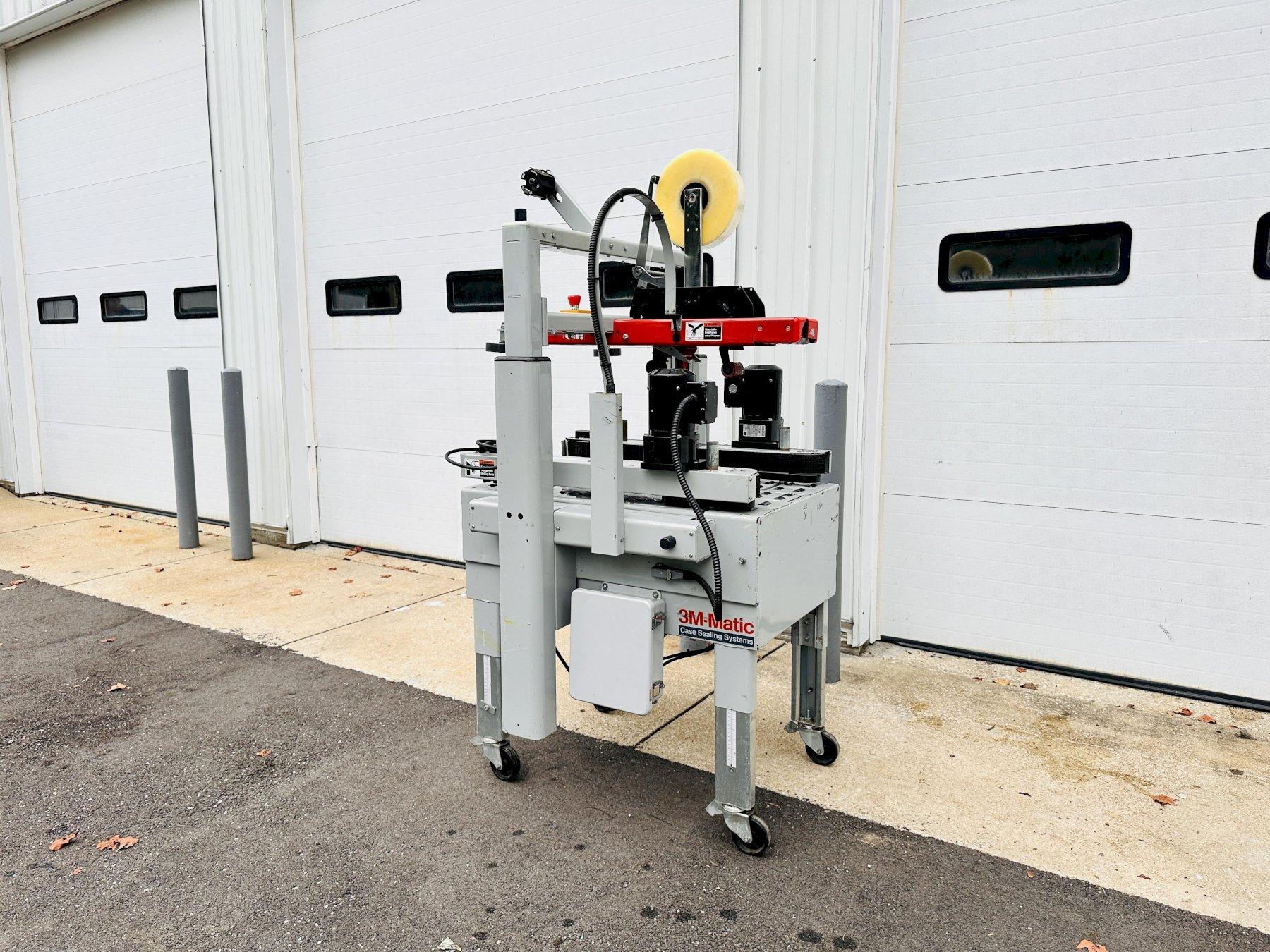

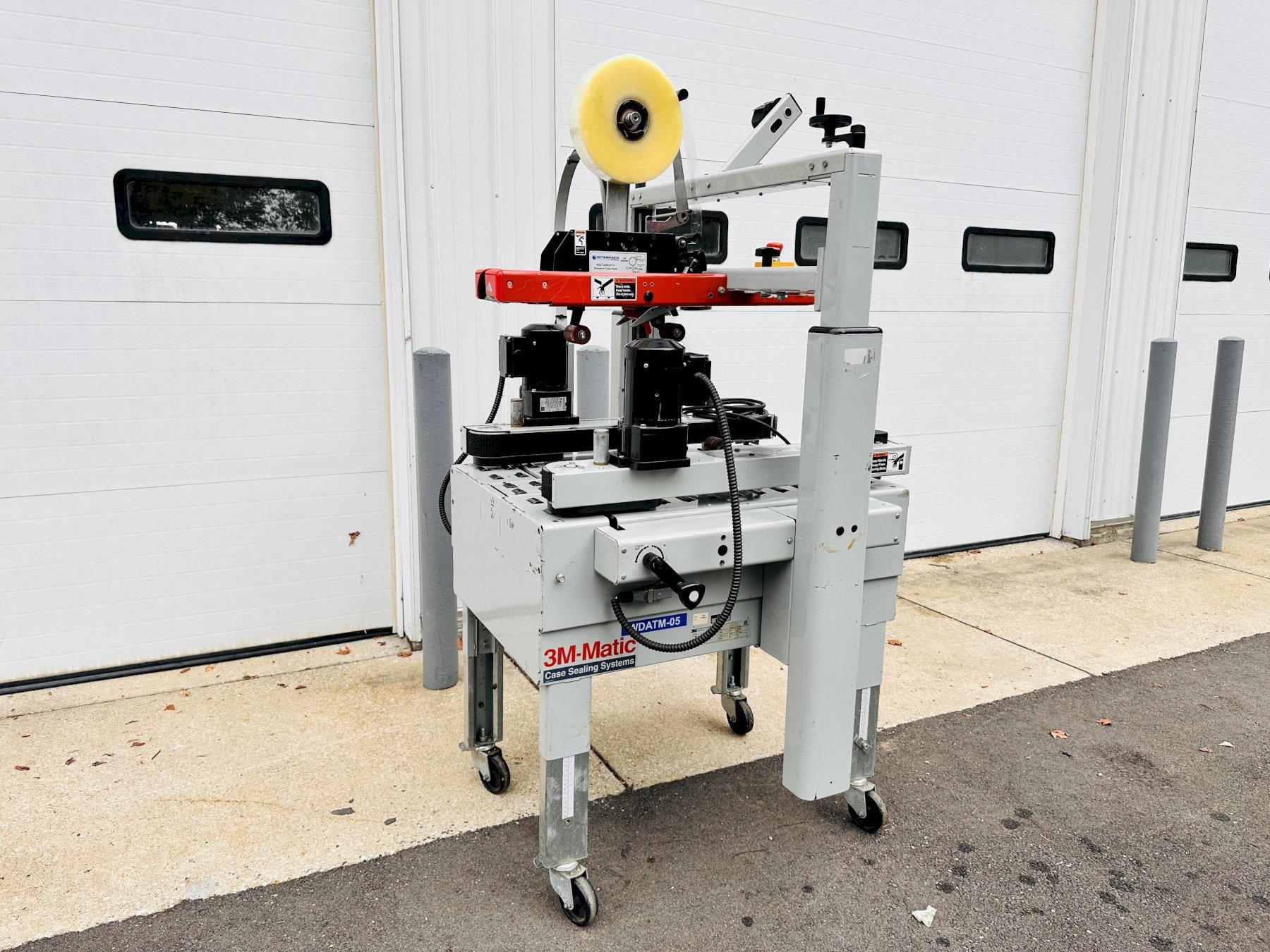

3M-Matic 800A Side Driven Belts

w/ 2” Top and Bottom Tape Heads

Adjustable Case Sealer

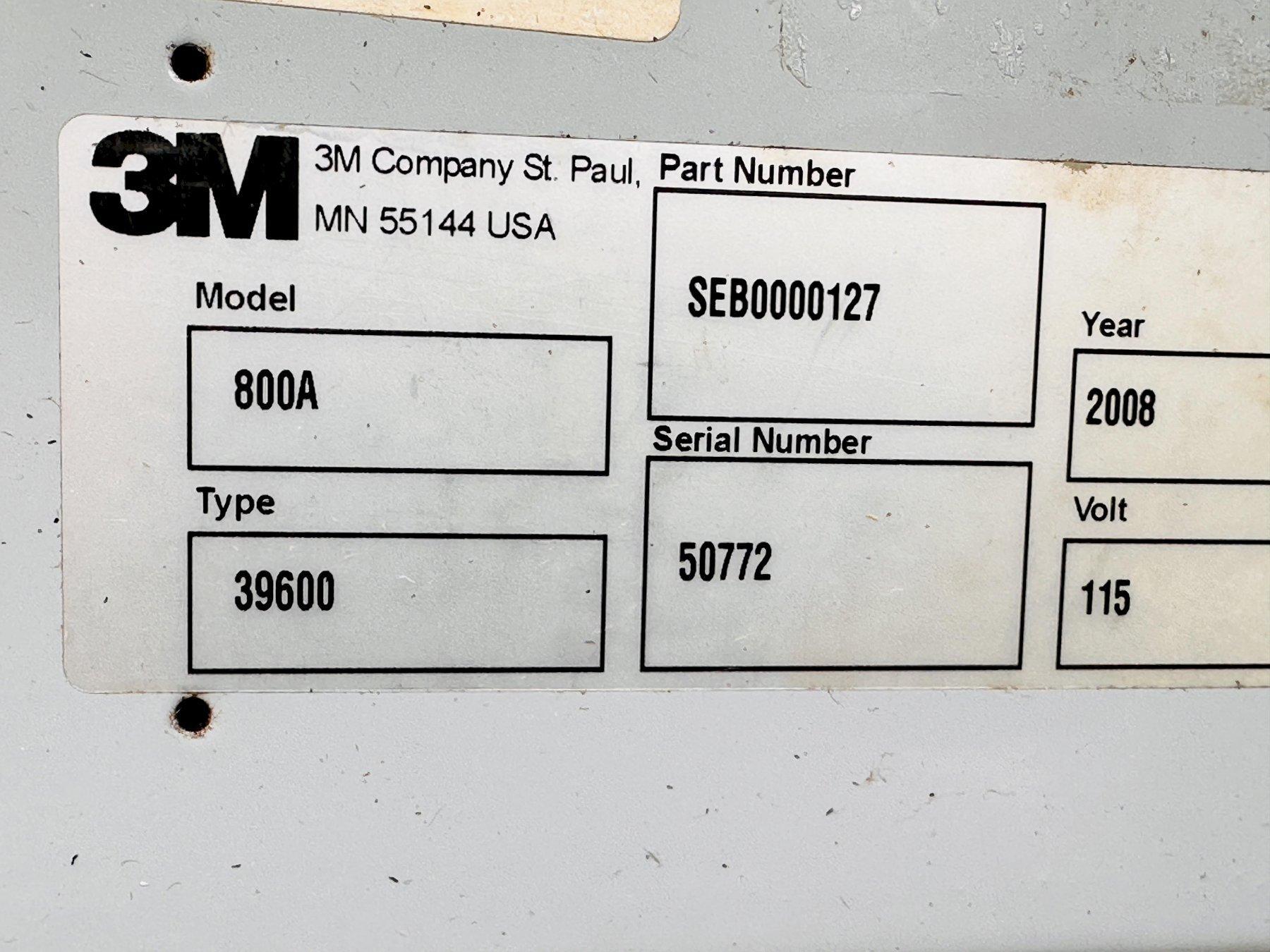

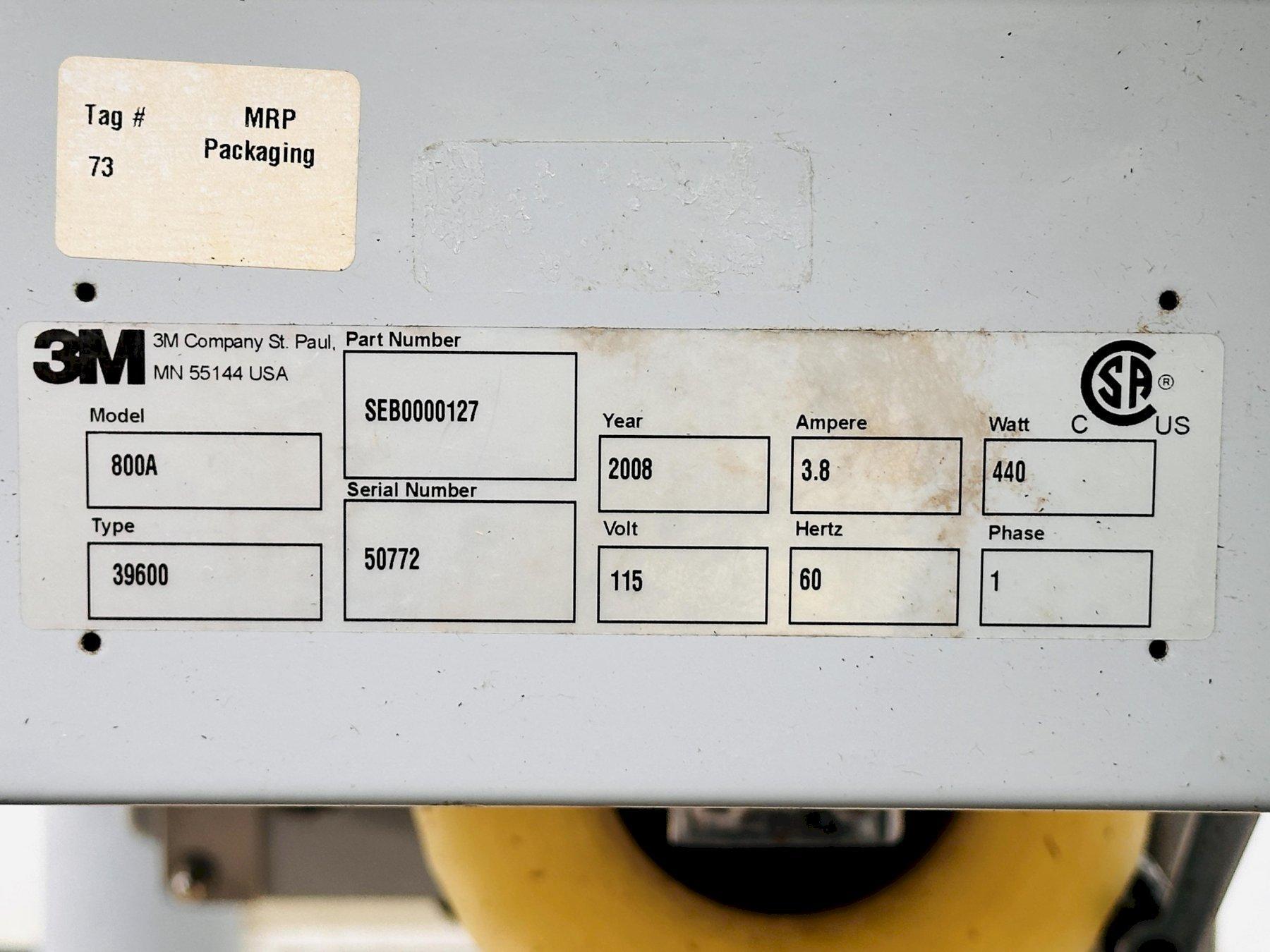

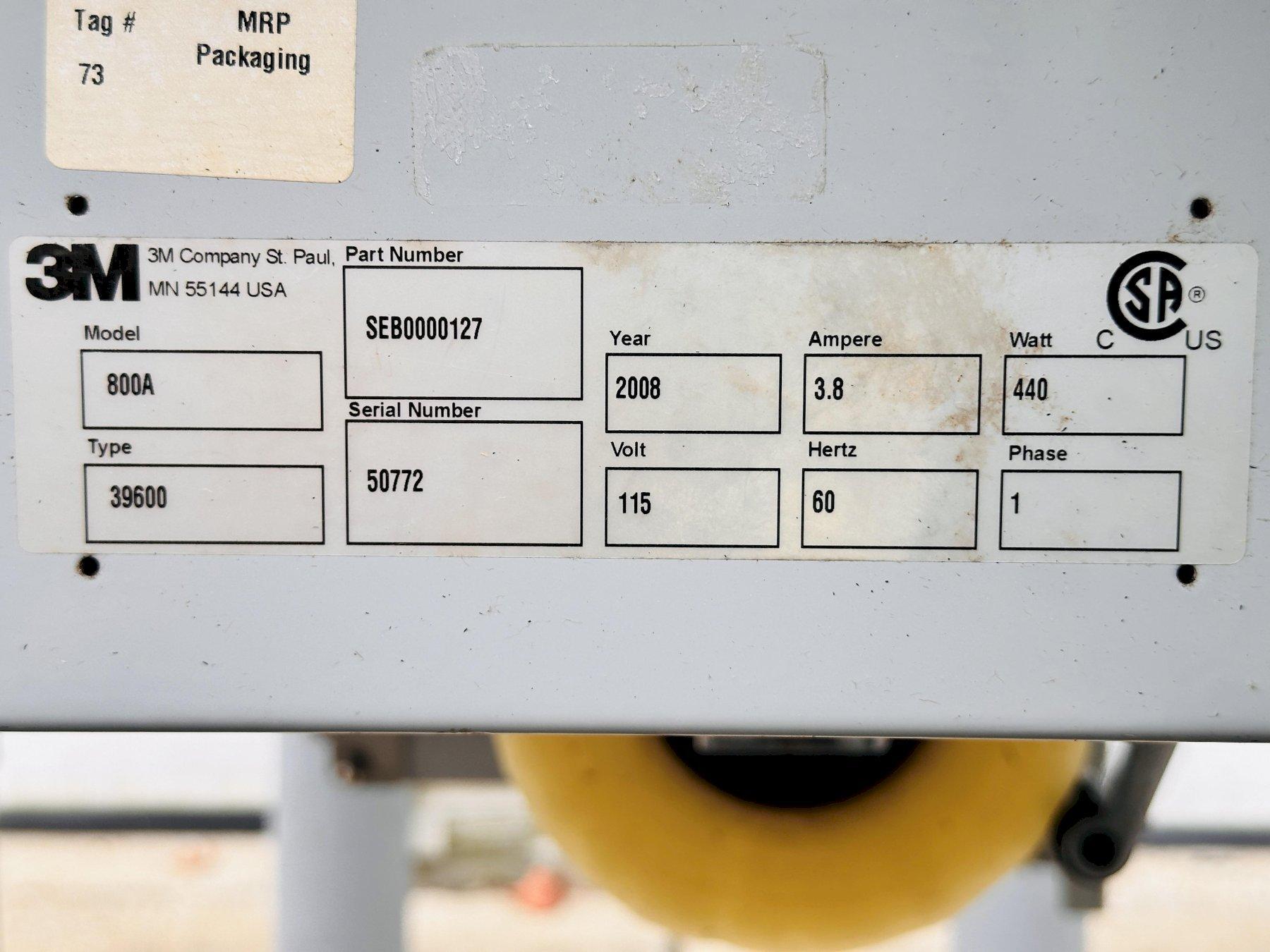

Manufacturer:

3M Company

Model:

800A

Serial No.:

50772

Part No.:

SEB0000127

Type:

39600

Tape Size:

2”

Machine Type:

Uniform Sized Boxes

Operation Type:

Operator fold flaps on boxes

Box Dimension Capacity:

::See Below In Yellow::

Length:

6” to unlimited  (152mm to unlimited)

Width:

4.5” to 21.5”  (114mm to 546mm)

Height:

4.75” to 24.5”  (121mm to 622mm)

Box Weights:

85lbs (max approx.)  (38kg)

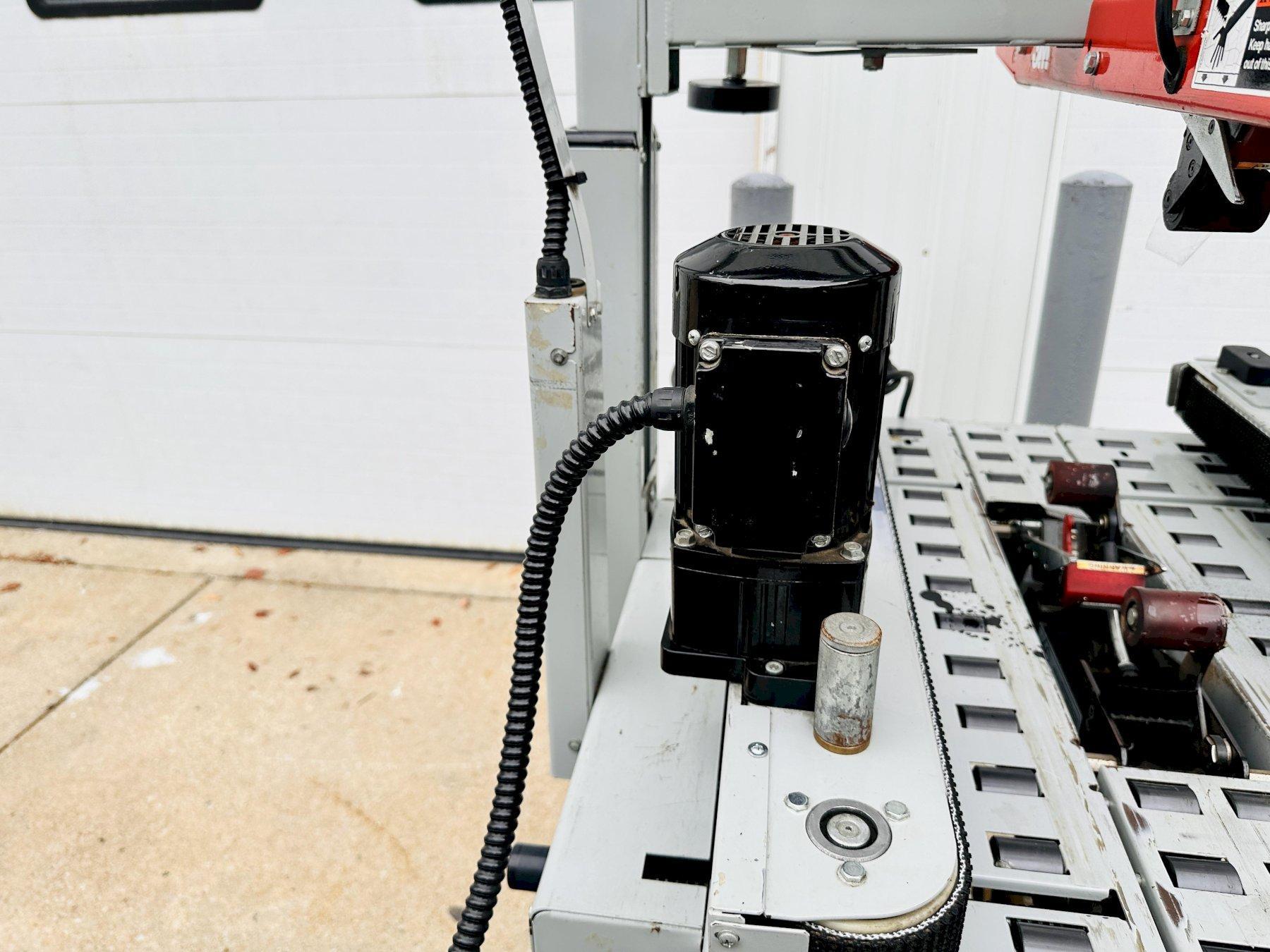

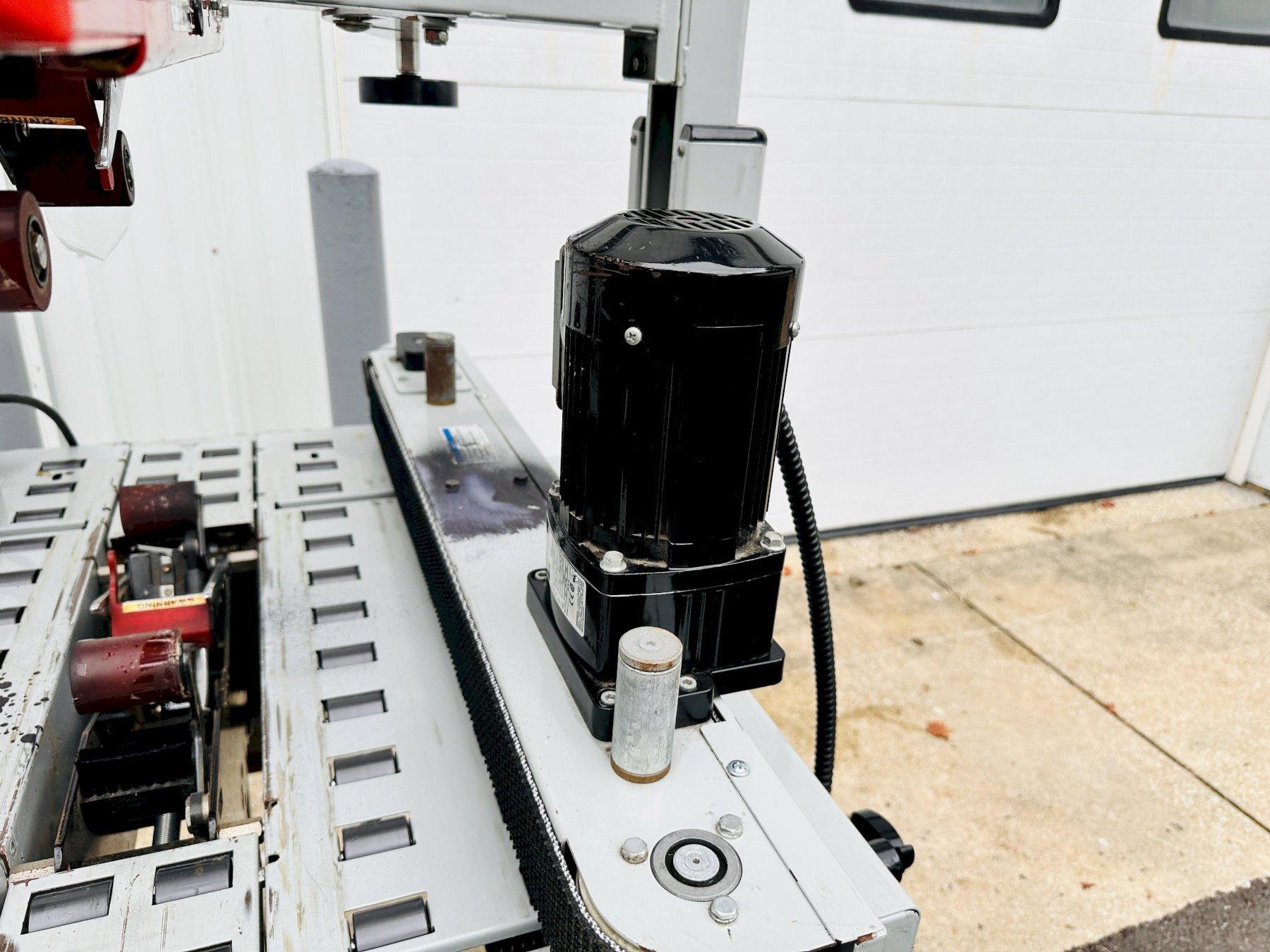

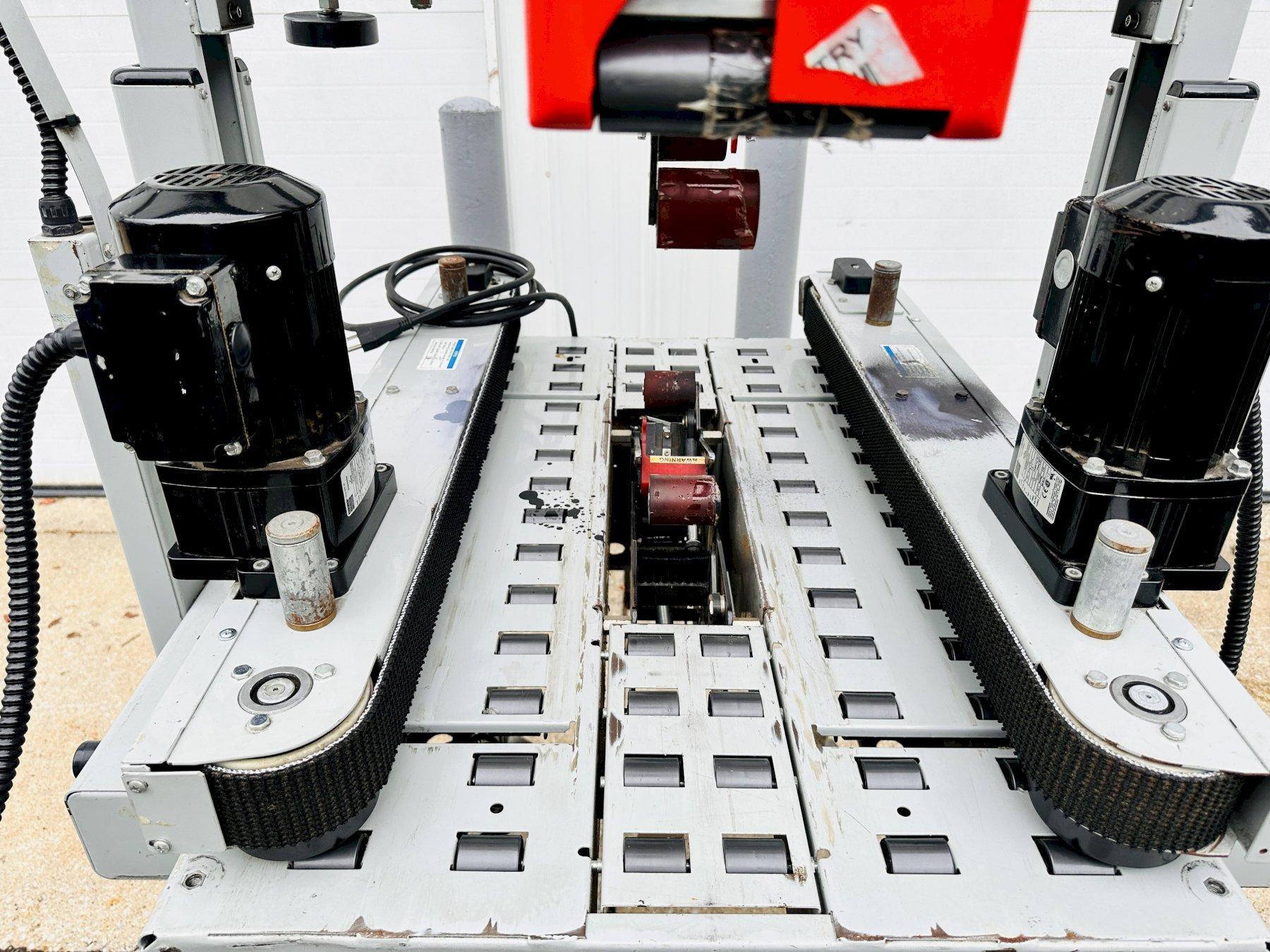

Belt Drive:

Side Belts

Operating Rate:

Up to 40 box per minute depending on box dimensions

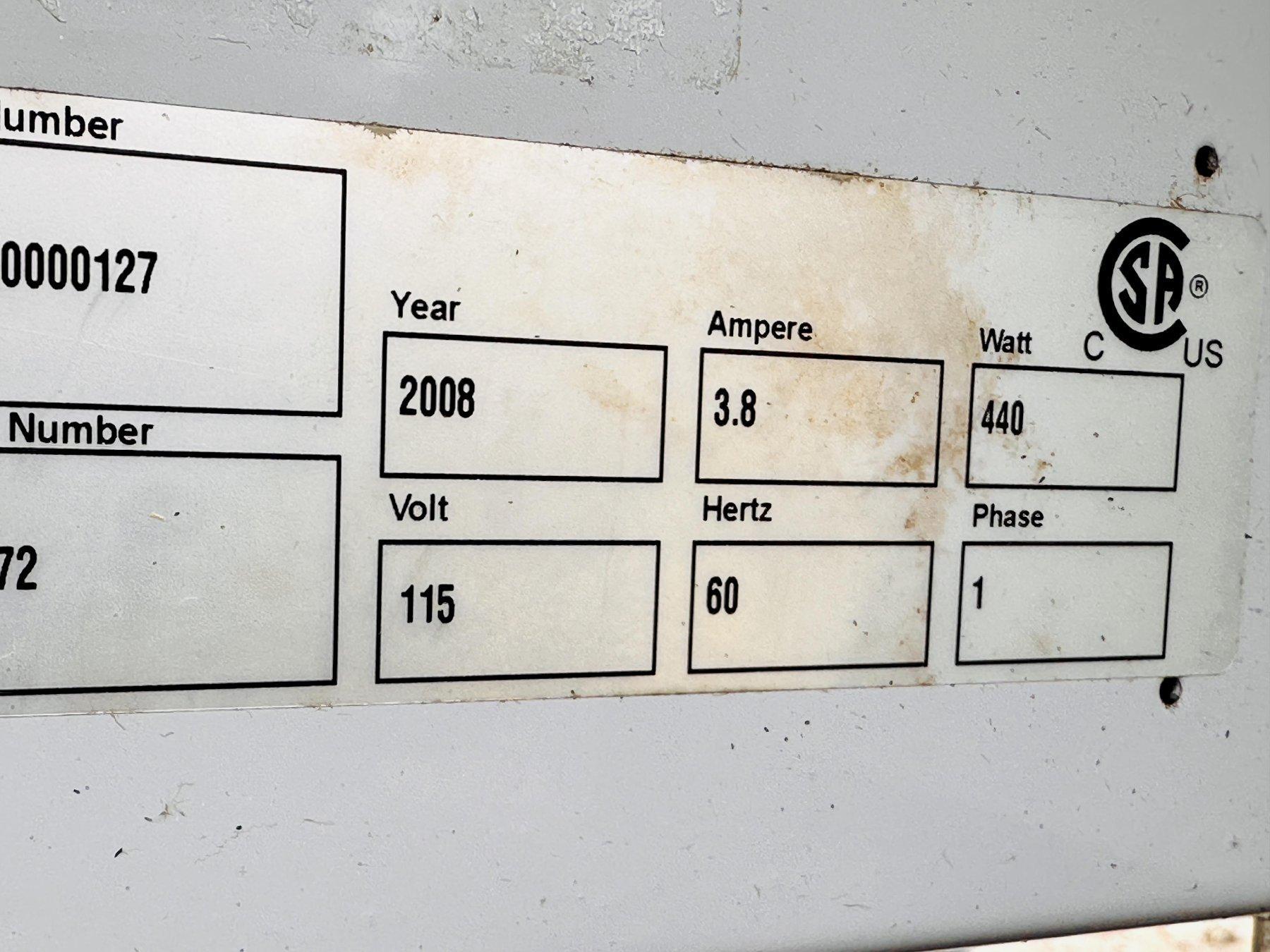

Electrical Specs:

115Volts, 440Watts, 3.8amps, 60HZ, Single Phase

Machine Dimensions:

38”W(Includes Mast Legs) x 36”L x Height Varies:

Manufactured Date:

2008

Machine Weight:

300lbs (approx.)

Known Issues:

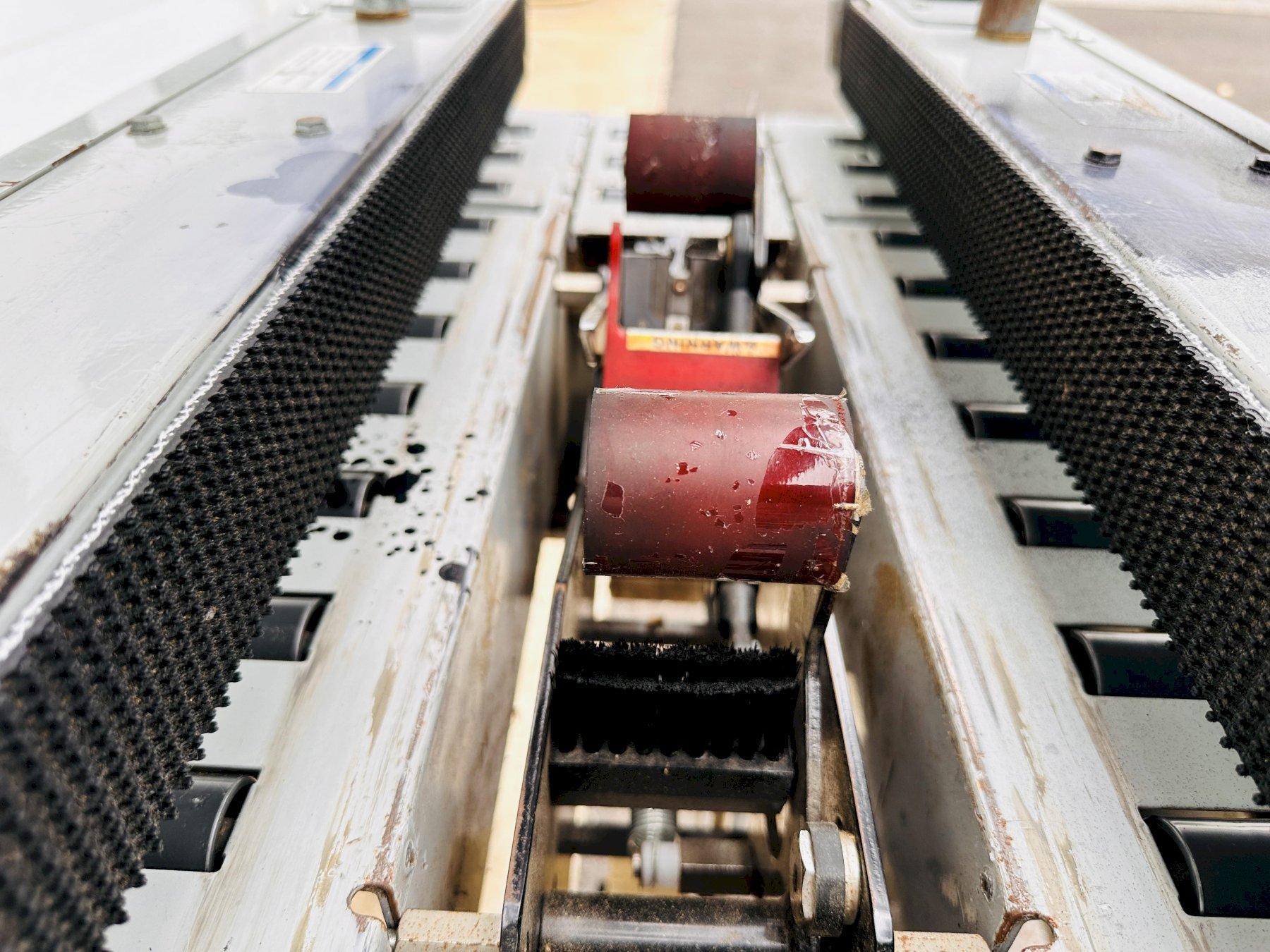

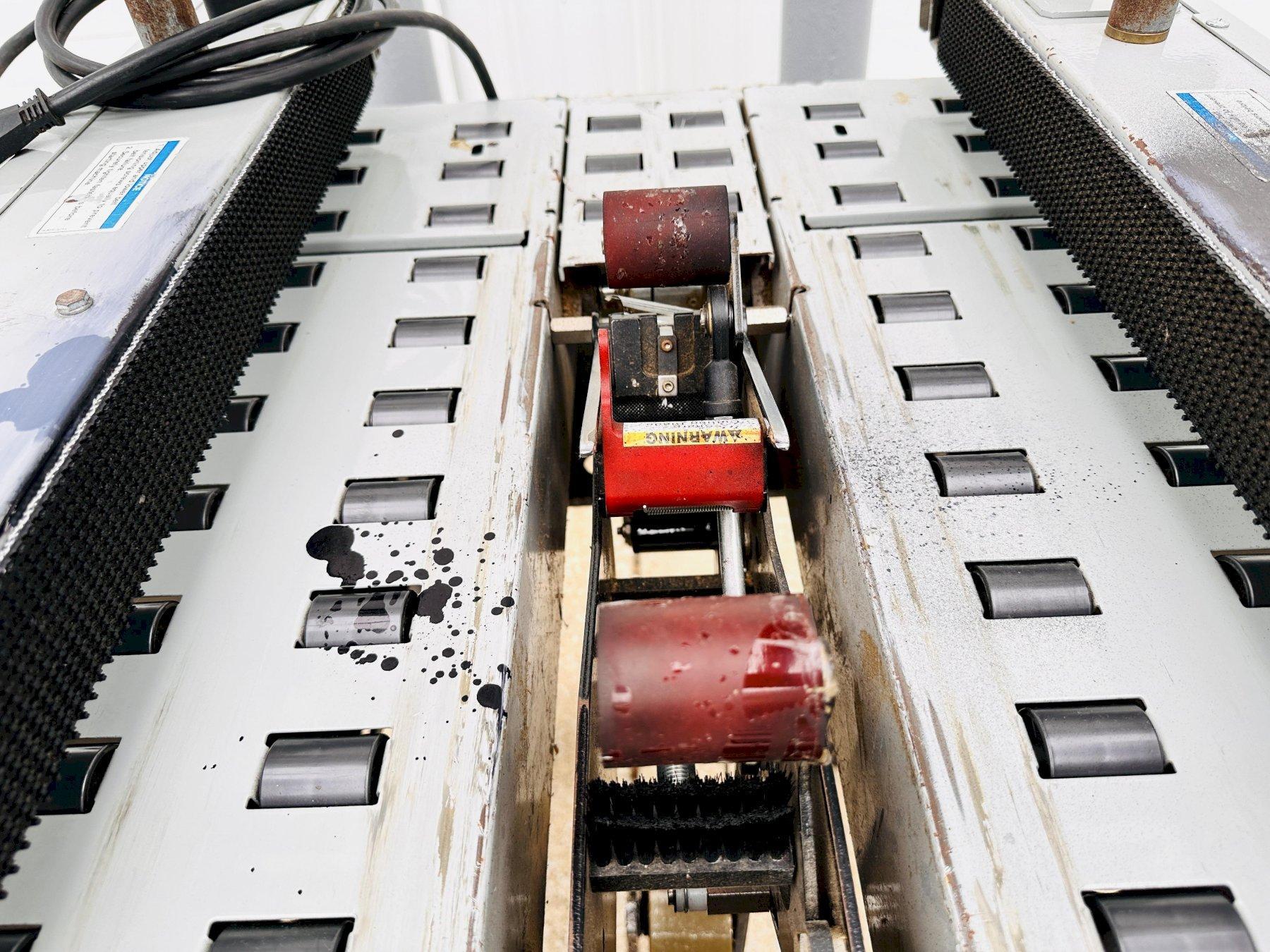

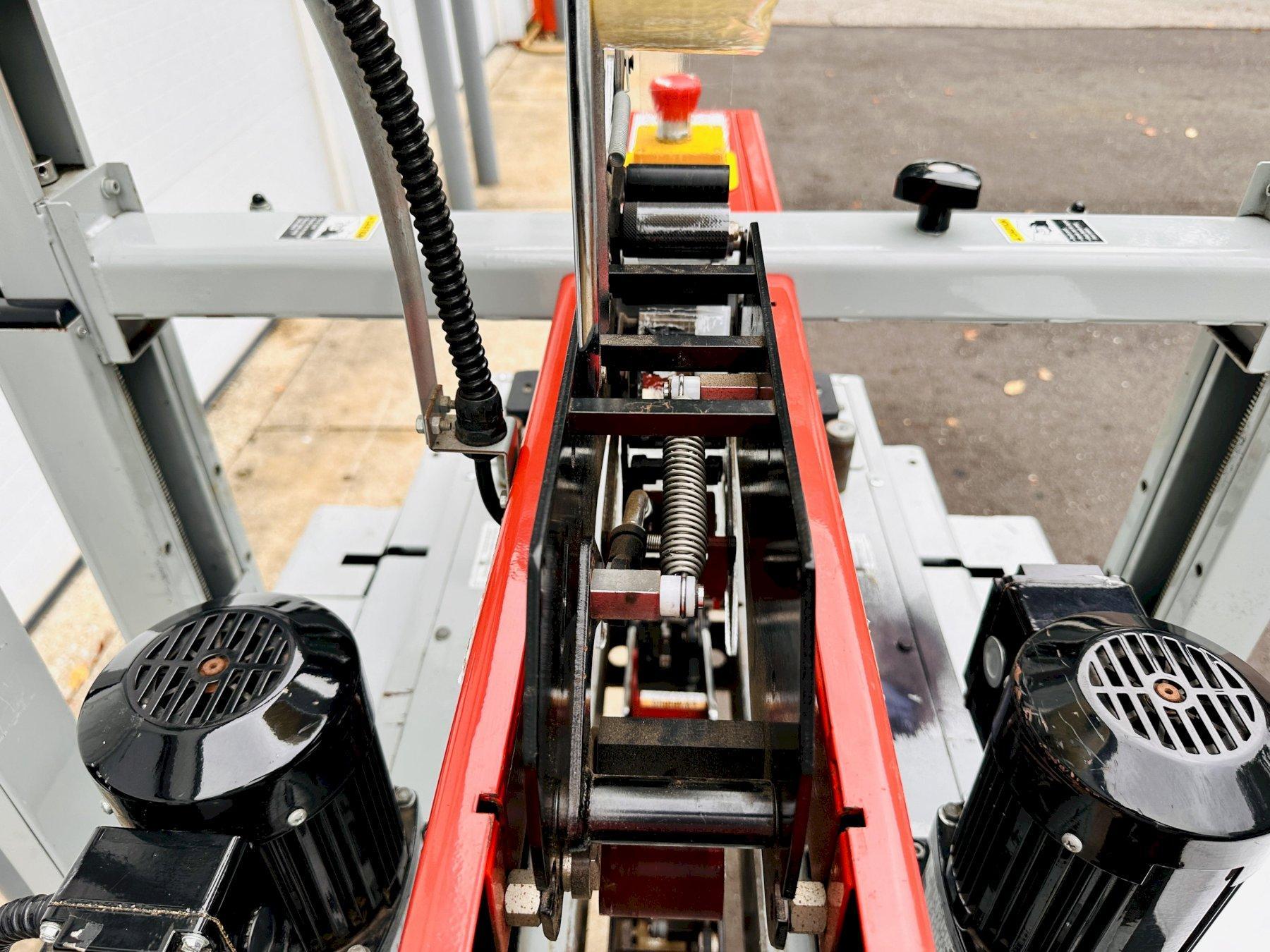

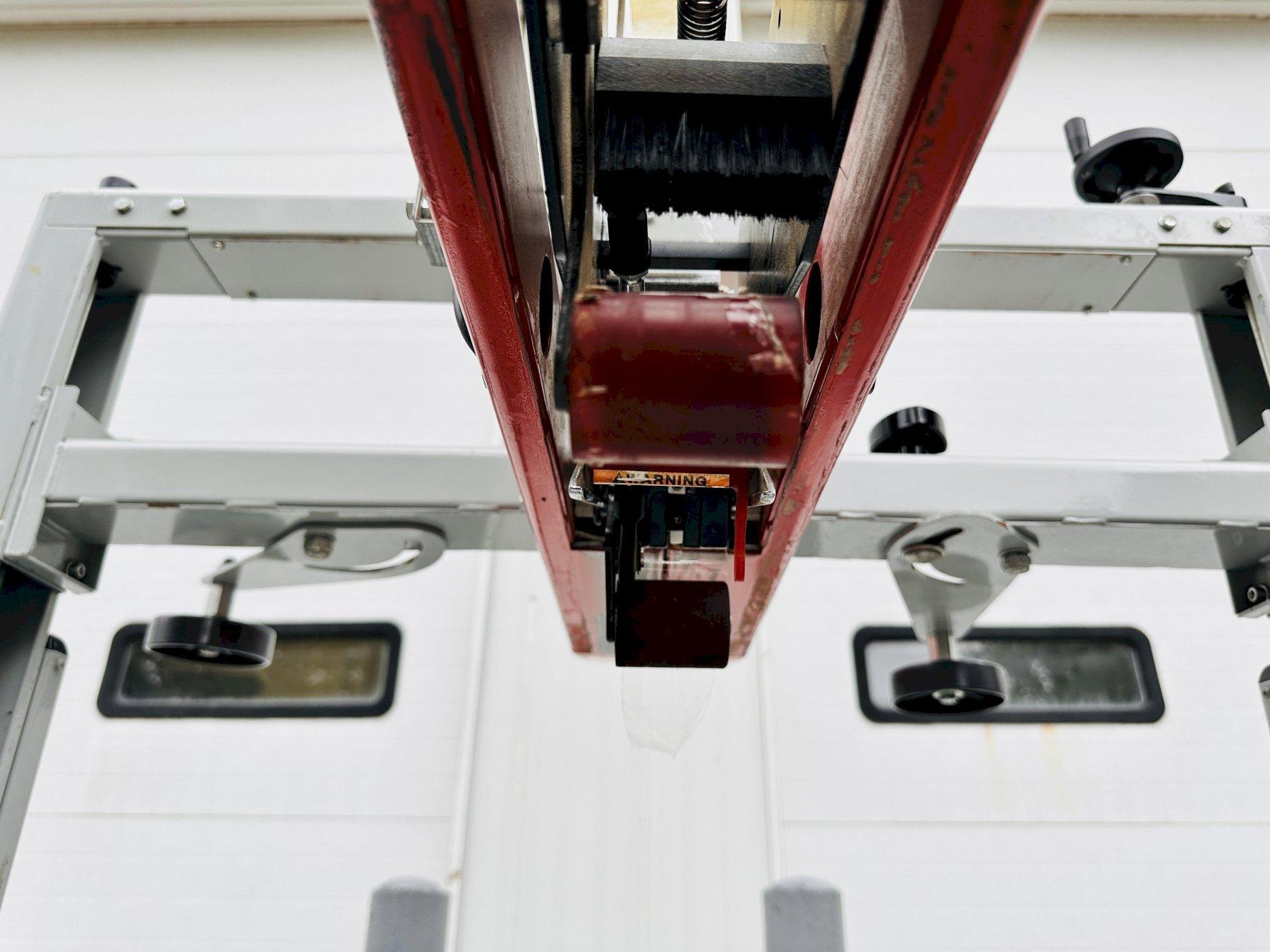

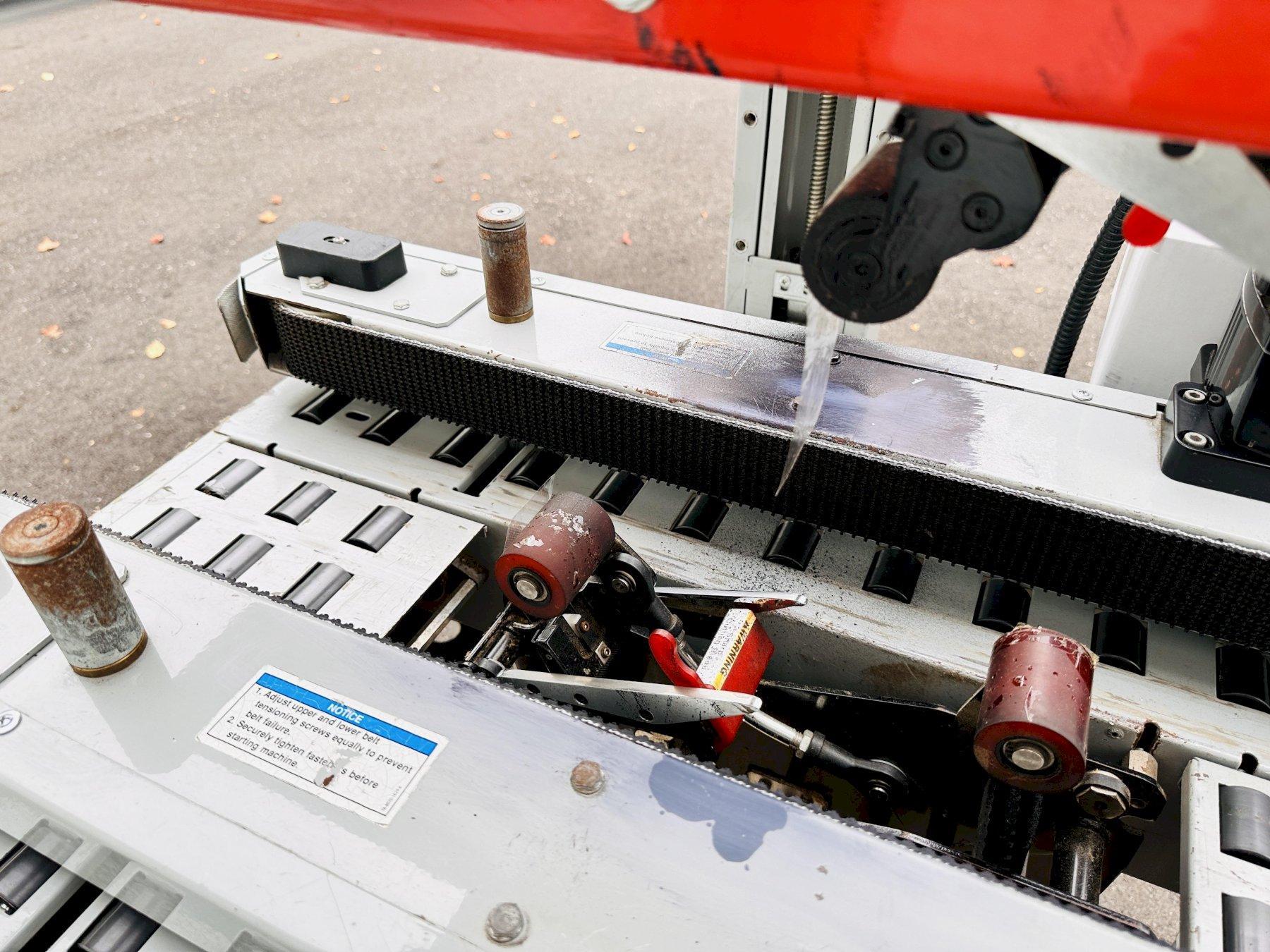

Tape heads/rollers show some signs of wear but boxes run through the unit very smoothly. Tapes is dispensed with no issues noted. Tape head/rollers will at some point need to be replaced. (can be seen in the pictures)

Features:

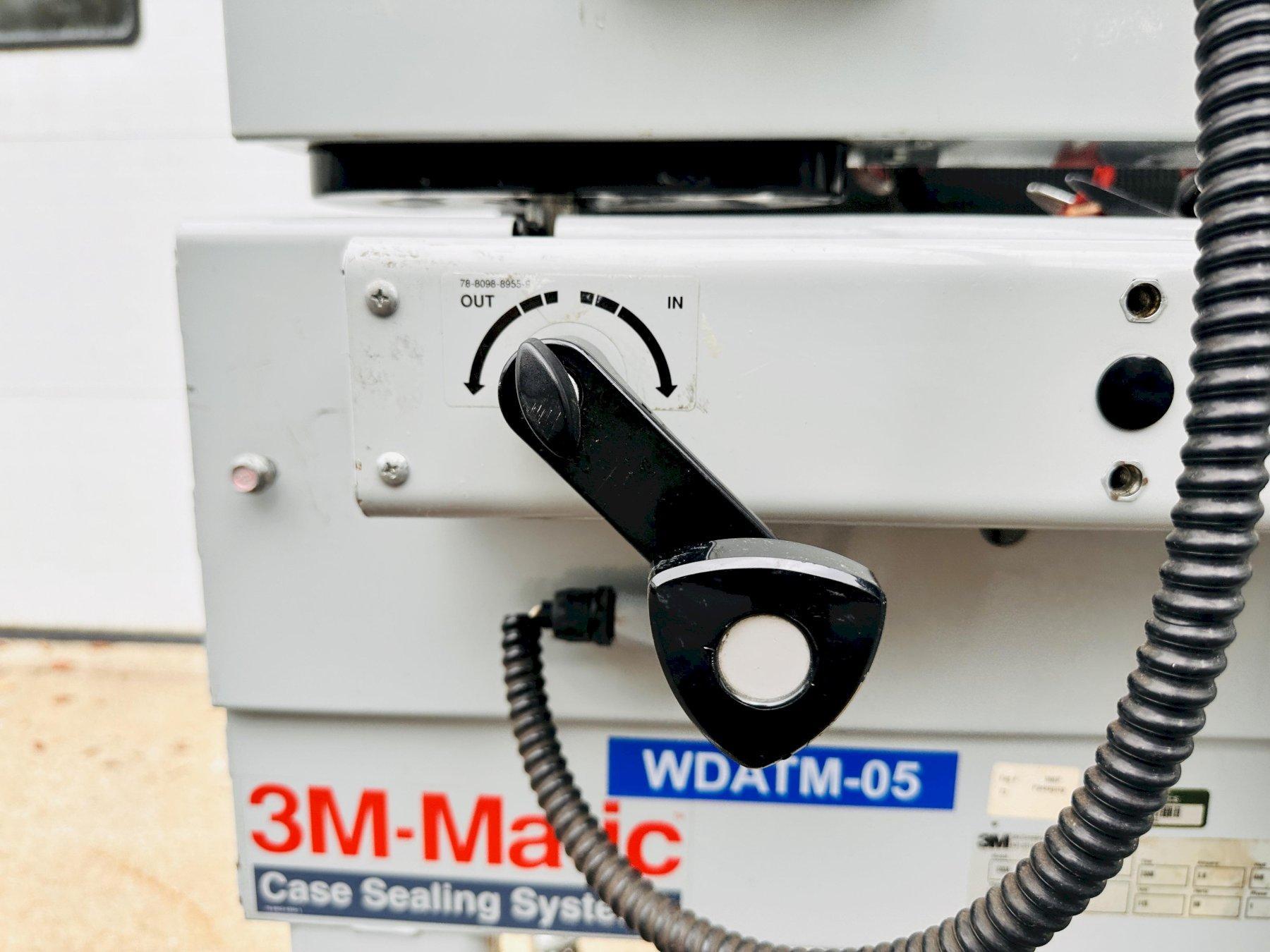

• Consistent durable case taper that manually adjusts to handle multiple box sizes.
• Rugged construction with 16-gauge welded steel frame and powder coat paint finish.
• Side belt drive for narrow profile boxes.
• Food and beverage, paper and print, distribution centers, pharmaceutical and general industrial.
• Case sealing, box sealer, taper, adjustable case sealer.

Seller Note:

Unit is USED. Some minor scratching/blemishes/bit of rust on paint and some residual ink from the previous packaging production line can be seen on the surfaces of the unit, but is not affecting the unit intended use. The unit was removed from a working environment and was functioning as intended when removed from service. This unit has been tested as seen in the video. Unit is being sold AS-IS, WHERE-IS, AS-SHOWN. Pictures are of the actual unit being purchased. Crating of the unit will be an EXTRA COST, otherwise unit will only ship on pallet. If the buyer has any questions, please feel free to ask. As always, buyer is welcome to personally inspect and test unit at our facilities.
